Baldor-Reliance Motor CEM3774T, 10HP, 1760RPM, 3PH, 60HZ, 215TC, 0748M, TEFC, F

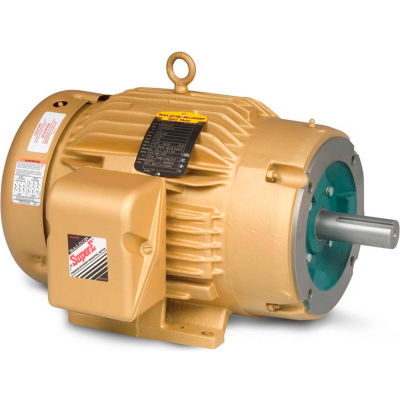

Actual product may differ from image shown

Baldor-Reliance Motor CEM3774T, 10HP, 1760RPM, 3PH, 60HZ, 215TC, 0748M, TEFC, F

Item #: WBB388917

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,663.00 up to 20% OFF

Price: $1,326.00

$221.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,326.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 10HP,1760RPM,3PH,60HZ,215TC,0748M,TEFC,F

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAME215TC
  • MOUNTINGRigid
  • NAMEPLATE RPM1760
  • PHASE3
  • MOTOR RPM 60Hz1760
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT231
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6307
  • BEARING-OPP-DRIVE-END6206
  • FL EFFICIENCY91.7
  • INSULATION CLASSF
  • FL AMPS24.4/12.2
  • KVA-CODEH
  • 208V AMPS--
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #CEM3774T
  • is_motorYes
  • ENCLOSURE TYPETotally Enclosed
  • POWER-FACTOR83
  • DRIVE END FLANGEC-Face
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES19.2
  • POLES4
  • SPEC. NUMBER07H058Y179G1
