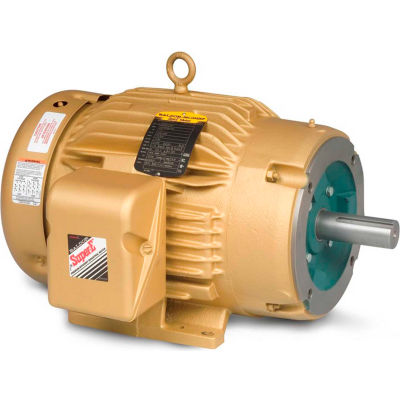

Baldor-Reliance Motor CEM4107T, 25HP, 3530RPM, 3PH, 60HZ, 284TSC, 0950M, TEFC

Actual product may differ from image shown

Baldor-Reliance Motor CEM4107T, 25HP, 3530RPM, 3PH, 60HZ, 284TSC, 0950M, TEFC

Item #: WBB388627

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,916.00 up to 21% OFF

Price: $3,086.00

$514.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,086.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 25HP,3530RPM,3PH,60HZ,284TSC,0950M,TEFC

Features:
  • Heavy gauge steel and cast iron frames
  • Ball bearings
  • ISR® (Inverter Spike Resistant®) copper windings
  • Low-loss electrical grade lamination steel
  • Three year warranty
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Class F insulated, 1.15 service factor. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER25
  • ENCLOSURETEFC
  • FRAME284TSC
  • MOUNTINGRigid
  • NAMEPLATE RPM3520
  • PHASE3
  • MOTOR RPM 60Hz3520
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT383
  • RPM RANGE3001-3600
  • DESIGN CODEB
  • BEARING-DRIVE-END6311
  • BEARING-OPP-DRIVE-END6208
  • FL EFFICIENCY91.7
  • INSULATION CLASSF
  • FL AMPS54/27
  • KVA-CODEH
  • 208V AMPS60
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #CEM4107T
  • CUSTOMER-PART-NUMBER--
  • is_motorYes
  • GREASEPOLYREX EM
  • ENCLOSURE TYPETotally Enclosed
  • SPACE-HEATER-AMPS--
  • SPACE-HEATER-VOLTS--
  • MAX. SPACE HEATER TEMP.--
  • POWER-FACTOR91
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES25.25
  • SERIAL-NUMBER--
  • POLES2
  • SPEC. NUMBER09F637Z645G1
