Baldor-Reliance Motor EFM2515T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 3944M, OPSB, F2

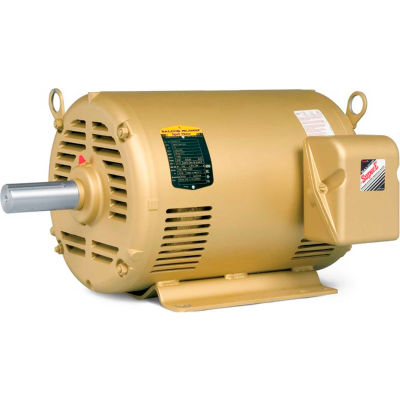

Actual product may differ from image shown

Baldor-Reliance Motor EFM2515T, 20HP, 1765RPM, 3PH, 60HZ, 256T, 3944M, OPSB, F2

Item #: WBB390266

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,290.00 up to 20% OFF

Price: $1,829.00

$304.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,829.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 20HP,1765RPM,3PH,60HZ,256T,3944M,OPSB,F2

Features:
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER20
  • ENCLOSUREOPSB
  • FRAME256T
  • MOUNTINGRigid
  • NAMEPLATE RPM1765
  • PHASE3
  • MOTOR RPM 60Hz1765
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT237
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6309
  • BEARING-OPP-DRIVE-END6208
  • FL EFFICIENCY93
  • INSULATION CLASSF
  • FL AMPS47/23.5
  • KVA-CODEH
  • 208V AMPS49.4
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #EFM2515T
  • is_motorYes
  • ENCLOSURE TYPEOpen/Drip Proof
  • POWER-FACTOR86
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES21.69
  • POLES4
  • SPEC. NUMBER39K070W915G1
