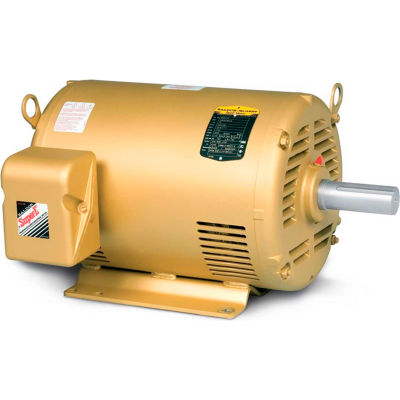

Baldor-Reliance Motor EM3116T, 1HP, 1765RPM, 3PH, 60HZ, 143T, 3524M, OPSB, F1

Actual product may differ from image shown

Baldor-Reliance Motor EM3116T, 1HP, 1765RPM, 3PH, 60HZ, 143T, 3524M, OPSB, F1

Item #: WBB389863

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$628.00 up to 25% OFF

Price: $469.95

Save $23.50 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,143T,3524M,OPSB,F1

Features:
  • Heavy duty frames
  • Ball bearings
  • Moisture resistant ISR® (Inverter Spike Resistant) copper windings
  • Low-loss electrical lamination grade steel
  • Three year warranty.
Typical Applications:
Typical applications include operations where continuous or frequent duty is required. Super-E Motors are designed to conserve energy over extended time periods. Inverter rated per NEMA MG1 Part 31.4.4.2. Suitable for variable torque applications and 20:1 constant torque speed range with properly sized and adjusted variable frequency drives.

Product Specifications

  • HORSEPOWER1
  • ENCLOSUREOPSB
  • FRAME143T
  • MOUNTINGRigid
  • NAMEPLATE RPM1760
  • PHASE3
  • MOTOR RPM 60Hz1760
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • WEIGHT36
  • RPM RANGE1701-1800
  • DESIGN CODEB
  • BEARING-DRIVE-END6205
  • BEARING-OPP-DRIVE-END6203
  • FL EFFICIENCY85.5
  • INSULATION CLASSF
  • FL AMPS3.1-3/1.5
  • KVA-CODEL
  • 208V AMPS3.1
  • BRANDBaldor-Reliance
  • DOE-CODE010A
  • MANUFACTURER PART #EM3116T
  • is_motorYes
  • ENCLOSURE TYPEOpen/Drip Proof
  • POWER-FACTOR71
  • DRIVE END FLANGEStandard
  • SERIAL-NUMBER--
  • C-DIMENSION INCHES11.62
  • POLES4
  • SPEC. NUMBER35L405M492G1
