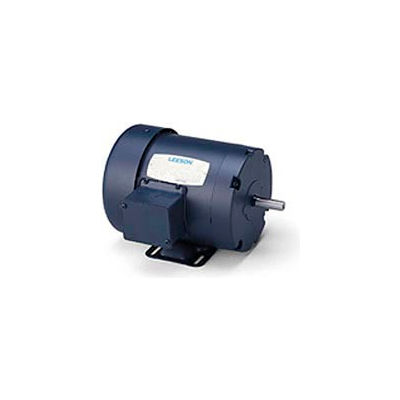

Leeson 120923.00, Premium Eff., 2 HP, 1745 RPM, 208-230/460V, 145T, TEFC, Rigid

Actual product may differ from image shown

Leeson 120923.00, Premium Eff., 2 HP, 1745 RPM, 208-230/460V, 145T, TEFC, Rigid

Item #: WBB221944

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 145T
  • 56C
  • 56H
  • 145TC

145T

$874.00 up to 48% OFF

Price: $452.95

Save $22.65 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 2HP, 1745/1435 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 145 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 6-5.8/2.9&6.8/3.4, Continuous duty, 1.25 Service Factor, Automatic thermal protection, Efficiency: 86.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Diameter 7/8.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETEFC
  • FRAME145T
  • MOUNTINGRigid
  • NAMEPLATE RPM1745
  • PHASE3
  • MOTOR RPM 60Hz1745
  • VOLTAGE208-230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • EFFICIENCY86.5
  • AMBIENT TEMP C40
  • SHAFT DIAMETER7/8
  • ROTATIONCCW/CW
  • WEIGHT48
  • ULY
  • CSAY
  • LEESON MODEL NO.C145T17FB32FF
  • UPC69172001624
  • COMPATIBLE WITH/REPLACES - 1Baldor EM3587T, WEG 00218ET3ERS145T, US Motors U2P2D
  • BEARING-DRIVE-END6205
  • COMPATIBLE WITH/REPLACES - 3Grainger/Dayton, 4FN63, 5N295, 5N775, 5N801
  • COMPATIBLE WITH/REPLACES - 2Baldor, EM3558T, EM3587T
  • FL AMPS6-5.8/2.9
  • BRANDLeeson
  • MANUFACTURER PART #120923.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
