Leeson 131463.00, Premium Eff., 3 HP, 1770 RPM, 208-230/460V, 182T, TEFC, Rigid

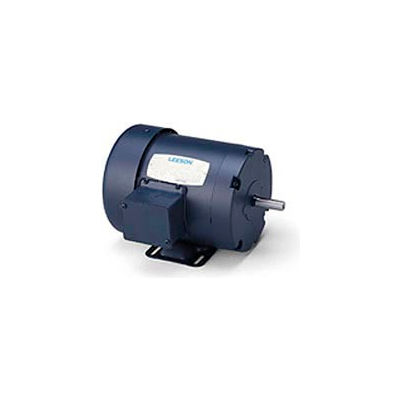

Actual product may differ from image shown

Leeson 131463.00, Premium Eff., 3 HP, 1770 RPM, 208-230/460V, 182T, TEFC, Rigid

Item #: WBB222007

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

  • SELECT
  • 182T
  • 182TC

182T

$988.00 up to 45% OFF

Price: $564.00

$94.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $564.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $564.00 ea.
  • Buy 3+ $541.00 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 3HP, 1770 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 182 Frame, Rigid Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 8.4-7.8/3.9, Continuous duty, 1.15 Service Factor, Automatic thermal protection, Efficiency: 89.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length 2-1/4, Shaft Diameter 1 1/8.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETEFC
  • FRAME182T
  • MOUNTINGRigid
  • NAMEPLATE RPM1770
  • PHASE3
  • MOTOR RPM 60Hz1770
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • EFFICIENCY89.5
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1-1/8
  • SHAFT LENGTH2-1/4
  • ROTATIONCCW/CW
  • WEIGHT83
  • ULY
  • CSAY
  • LEESON MODEL NO.C182T17FB32EE
  • UPC69172001732
  • RPM RANGE1701-1800
  • COMPATIBLE WITH/REPLACES - 1Baldor EM3611T, WEG 00318ET3ERS182T, US Motors S3P2A, Marathon U607A
  • BEARING-DRIVE-END6206
  • COMPATIBLE WITH/REPLACES - 2Baldor, EM3611T
  • FL AMPS8.4-7.8/3.9
  • BRANDLeeson
  • MANUFACTURER PART #131463.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
