Leeson 131986.00, Premium Eff., 5 HP, 3515 RPM, 208-230/460V, 184T, DP, Rigid

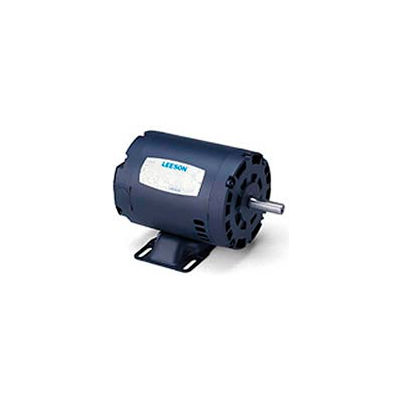

Actual product may differ from image shown

Leeson 131986.00, Premium Eff., 5 HP, 3515 RPM, 208-230/460V, 184T, DP, Rigid

Item #: WBB222020

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$921.00 up to 47% OFF

Price: $489.95

Save $24.50 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 5HP, 3515 RPM, Drip-Proof (DP) Enclosure, 184 Frame, Rigid Mount, 208-230/460V, 3PH, 60HZ, Name Plate Amps 13-12/6, Continuous duty, 1.15 Service Factor, Automatic thermal protection, Efficiency: 86.5, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length 2-1/4, Shaft Diameter 1 1/8.

Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that the motor be protected with a cover that does not restrict the flow of air to the motor.
Rigid base allows motor to be rigidly mounted on equipment.



Product Specifications

  • HORSEPOWER5
  • ENCLOSUREDP
  • FRAME184T
  • MOUNTINGRigid
  • NAMEPLATE RPM3515
  • PHASE3
  • MOTOR RPM 60Hz3515
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • EFFICIENCY86.5
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1-1/8
  • SHAFT LENGTH2-3/4
  • ROTATIONCCW/CW
  • WEIGHT86
  • ULY
  • CSAY
  • LEESON MODEL NO.C184T34DB11AA
  • UPC69172032690
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1Baldor EM3212T, WEG 00536OT3E182T, Marathon U1248
  • COMPATIBLE WITH/REPLACES - 3GRAINGER/DAYTON, 5N308
  • BEARING-DRIVE-END6206
  • COMPATIBLE WITH/REPLACES - 2TechTop GR3-RS-OP-182T-2-B-D-5
  • FL AMPS13-12/6
  • BRANDLeeson
  • MANUFACTURER PART #131986.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPEOpen/Drip Proof
  • FRAME MATERIALRolled Steel
