Leeson 170143.60, Premium Eff., 10 HP, 3525 RPM, 208-230/460V, 213T, DP, Rigid

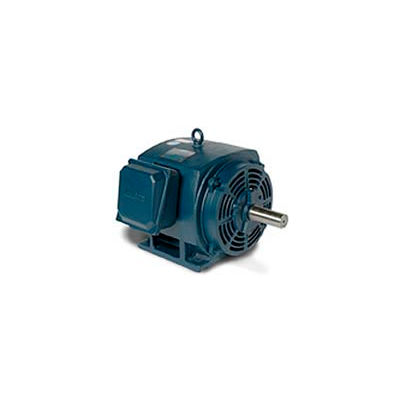

Actual product may differ from image shown

Leeson 170143.60, Premium Eff., 10 HP, 3525 RPM, 208-230/460V, 213T, DP, Rigid

Item #: WBB222150

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,492.00 up to 51% OFF

Price: $751.00

$125.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $751.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $751.00 ea.
  • Buy 3+ $728.00 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 10/7.5HP, 3525/2930 RPM, Drip-Proof (DP) Enclosure, 213 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 25-23.6/11.8&21.6/10.8, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 91, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3, Shaft Diameter 1 3/8.

Drip proof (DP)enclosure has vents in end shield and/or frame to prevent drops of liquid from falling into motor within a 15 degree angle from vertical. Designed for use in areas that are reasonably dry, clean, and well ventilated (usually indoors). If installed outdoors, it is recommended that the motor be protected with a cover that does not restrict the flow of air to the motor.
Rigid base allows motor to be rigidly mounted on equipment.



Product Specifications

  • HORSEPOWER10
  • ENCLOSUREDP
  • FRAME213T
  • MOUNTINGRigid
  • NAMEPLATE RPM3525
  • PHASE3
  • MOTOR RPM 60Hz3525
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPENEMA Premium
  • EFFICIENCY91
  • AMBIENT TEMP C40
  • SHAFT DIAMETER1-3/8
  • SHAFT LENGTH3
  • ROTATIONCCW/CW
  • WEIGHT153
  • ULY
  • CSAY
  • LEESON MODEL NO.C213T34DB45CC
  • UPC69172002824
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1Marathon U764
  • BEARING-DRIVE-END6308
  • COMPATIBLE WITH/REPLACES - 3Marathon, U764
  • COMPATIBLE WITH/REPLACES - 2Grainger/Dayton, 3KW42
  • FL AMPS25-23.6/11.8
  • BRANDLeeson
  • MANUFACTURER PART #170143.60
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPEOpen/Drip Proof
  • FRAME MATERIALCast Iron
