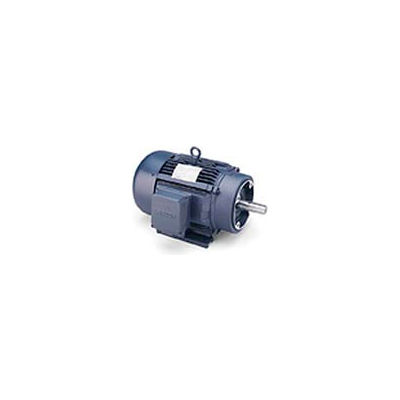

Leeson 140770.00, Premium Eff., 7.5 HP, 3505 RPM, 208-230/460V, 213TC, TEFC, C-Face Rigid

Actual product may differ from image shown

Leeson 140770.00, Premium Eff., 7.5 HP, 3505 RPM, 208-230/460V, 213TC, TEFC, C-Face Rigid

Item #: WBB222030

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,614.00 up to 51% OFF

Price: $822.00

$137.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $822.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $822.00 ea.
  • Buy 3+ $797.00 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 7.5HP, 3450 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 213 Frame, Rigid Mount, 208-220/460V, 3, 60HZ, Name Plate Amps 19.6-17.8/8.9&15/7.5, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 90.2, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3", Shaft Diameter SPECIAL".

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.


Click here to see our full selection of Motor Controls and Drives.

Product Specifications

  • HORSEPOWER7 1/2
  • ENCLOSURETEFC
  • FRAME213TC
  • MOUNTINGC-Face Rigid
  • NAMEPLATE RPM3505
  • PHASE3
  • MOTOR RPM 60Hz3505
  • VOLTAGE208-230/460
  • HERTZ60
  • DUTYContinuous
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPENEMA Premium
  • EFFICIENCY90.2
  • AMBIENT TEMP C40
  • SHAFT DIAMETERSPECIAL
  • SHAFT LENGTH3
  • ROTATIONCCW/CW
  • WEIGHT160
  • ULY
  • CSAY
  • UPC69172034975
  • RPM RANGE3001-3600
  • COMPATIBLE WITH/REPLACES - 1Baldor CEM3709T, WEG 00736ET3ERS213TC, US Motors S7P1AC, Marathon C389A
  • BEARING-DRIVE-END309
  • FL AMPS19.6-17.8/8.9
  • BRANDLeeson
  • MANUFACTURER PART #140770.00
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALRolled Steel
