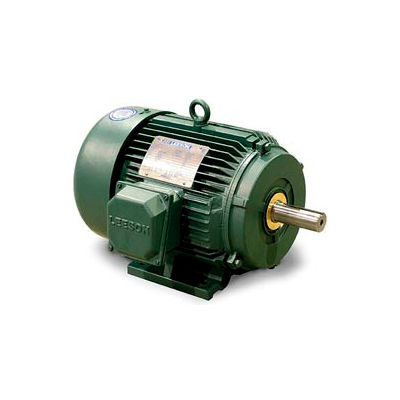

Leeson 171635.60, Premium Eff., 5 HP, 1180 RPM, 208-230/460V, 215T, TEFC, Rigid

Actual product may differ from image shown

Leeson 171635.60, Premium Eff., 5 HP, 1180 RPM, 208-230/460V, 215T, TEFC, Rigid

Item #: WBB222215

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,935.00 up to 49% OFF

Price: $1,014.00

$169.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,014.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $1,014.00 ea.
  • Buy 3+ $983.00 ea.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 5/3HP, 1180/985 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 215 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 15.3-14.4/7.2&11.8/5.9, Continuous duty, 1.25 Service Factor, No thermal protection, Efficiency: 89.5, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation, Shaft Length 3".

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.


Click here to see our full selection of Motor Controls and Drives.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME215T
  • MOUNTINGRigid
  • NAMEPLATE RPM1180
  • PHASE3
  • MOTOR RPM 60Hz1180
  • VOLTAGE208-230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPENEMA Premium
  • EFFICIENCY89.5
  • AMBIENT TEMP C40
  • SHAFT LENGTH3
  • ROTATIONCCW/CW
  • WEIGHT186
  • ULV-INS, CONST UL REC
  • CSAN
  • LEESON MODEL NO.C215T11FW1AAA
  • UPC69172035641
  • RPM RANGE1101-1200
  • COMPATIBLE WITH/REPLACES - 1Baldor ECP3768T
  • BEARING-DRIVE-ENDNONE
  • FL AMPS15.3-14.4/7.2
  • BRANDLeeson
  • MANUFACTURER PART #171635.60
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALCast Iron
