Leeson 170005.60, Premium Eff., 30 HP, 1190 RPM, 208-230/460V, 326T, TEFC, Rigid

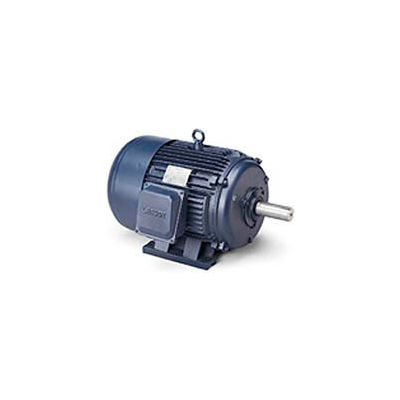

Actual product may differ from image shown

Leeson 170005.60, Premium Eff., 30 HP, 1190 RPM, 208-230/460V, 326T, TEFC, Rigid

Item #: WBB221925

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$7,347.00 up to 50% OFF

Price: $3,664.00

$610.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $3,664.00 or save 5% on purchase.

Quantity

Customers Also Viewed

General Purpose, 3-Phase Motor: 30/25HP, 1190/990 RPM, Totally-Enclosed Fan-Cooled (TEFC) Enclosure, 326 Frame, Rigid Mount, 208-230/460V, 3PH, 60/50HZ, Name Plate Amps 84-77.2/38.6&74.0/37.0, Continuous duty, 1.25 Service Factor, No thermal protection, Efficiency: 93.6, Efficiency Type: NEMA Premium, Ambient 40 C, Reverse Rotation.

Totally enclosed fan cooled (TEFC) enclosure has no vent openings, and is tightly enclosed to prevent the free exchange of air, but is not airtight. An external fan is an integral part of the motor and provides cooling by blowing air around the outside frame of the motor. Suitable for use where exposed to dirt or dampness, but NOT very moist or hazardous (explosive) locations.
Rigid base allows motor to be rigidly mounted on equipment.

Product Specifications

  • HORSEPOWER30
  • ENCLOSURETEFC
  • FRAME326T
  • MOUNTINGRigid
  • NAMEPLATE RPM1190
  • PHASE3
  • MOTOR RPM 60Hz1190
  • VOLTAGE208-230/460
  • HERTZ60/50
  • DUTYContinuous
  • SERVICE FACTOR1.25
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPENEMA Premium
  • EFFICIENCY93.6
  • AMBIENT TEMP C40
  • ROTATIONCCW/CW
  • WEIGHT624
  • ULY
  • CSAY
  • LEESON MODEL NO.C326T11FB3DD
  • UPC69172015487
  • RPM RANGE1101-1200
  • COMPATIBLE WITH/REPLACES - 1Baldor ECP4117T-4, WEG 03012ET3E326T, Marathon E966A
  • COMPATIBLE WITH/REPLACES - 2TechTop GR3-CI-TF-326T-6-BR-D-30
  • FL AMPS84-77.2/38.6
  • BRANDLeeson
  • MANUFACTURER PART #170005.60
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • ENCLOSURE TYPETotally Enclosed
  • FRAME MATERIALCast Iron
