Leeson Motors - 3/4HP, 208-230/460V, 1725/1425RPM, EPFC, Rigid C Mount

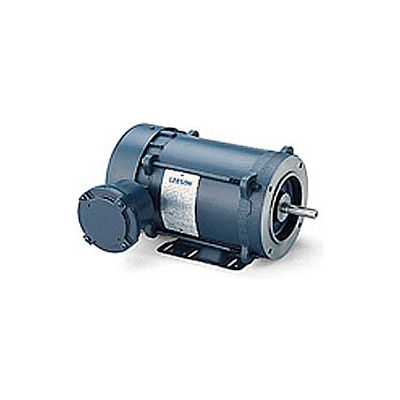

Actual product may differ from image shown

Leeson Motors - 3/4HP, 208-230/460V, 1725/1425RPM, EPFC, Rigid C Mount

Item #: WBB217620

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,200.00 up to 51% OFF

Price: $602.00

$100.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $602.00 or save 5% on purchase.

Quantity Discount

  • Buy 1-2 $602.00 ea.
  • Buy 3+ $584.00 ea.

Quantity

Customers Also Viewed

Leeson Explosion-Proof, 3-Phase, C Face Motor With Base - .75 HP - 3450 / 2850 RPM

Leeson Explosion-Proof, 3-Phase, C Face Motors With Base are solidly made for long lasting durability and dependability. Division I, Division II, Class I, Groups C&D Class II, Groups F & G with Conduit Box for hazardous locations. Rugged mechanical construction meeting all requirements for safety. Double shielded, pre-lubricated ball bearings. Inherent automatic overload protection. Explosion-proof conduit box included. Division I areas are environments where a hazard is present continuously or would be subject to fire or explosion if the hazard was present as a result of an accident or uncommon occurrence. Division II areas are environments where the threat of fire or explosion is not normally present and not likely to result in the event of an abnormal occurrence. Note: These motors must be applied in accordance with the National Electrical Code, Article #500. 56 Frame. UL and CSA listed.

Product Specifications

  • HORSEPOWER3/4
  • ENCLOSUREEPFC
  • FRAME56
  • BRANDLeeson
  • MOUNTINGC-Face Rigid
  • MOTOR RPM 60Hz1725
  • MOTOR RPM 50Hz1425
  • RPM1725/1425
  • PHASE3
  • VOLTAGE208-230/460
  • COMPATIBLE WITH/REPLACESBaldor CM7010A
  • HERTZ60/50
  • SERVICE FACTOR1
  • THERMAL PROTECTIONAutomatic
  • EFFICIENCY TYPEStandard
  • EFFICIENCY75.5
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW/CW
  • ENCLOSURE TYPEExplosion Proof
  • WEIGHT45
  • ULY
  • CSAY
  • LEESON MODEL NO.A6T17XK11CC
  • UPC69172001417
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • DESIGNSq Cage Inductor Run
  • BEARING-DRIVE-END6203
  • FL AMPS2.9-3/1.5
  • MANUFACTURER PART #114630.00
