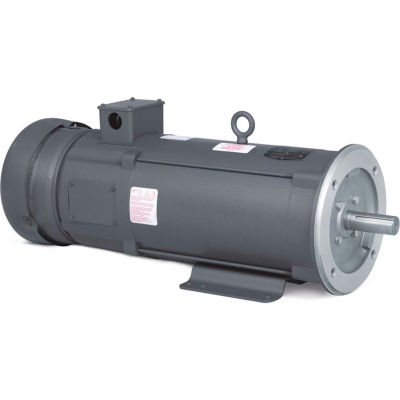

Baldor-Reliance Intergral Tach DC Motor, CDPT3605, 5 HP, 1750 RPM, TEFC, 1810ATC Frame

Rollover image to zoom in

Click image to enlarge

See all 13 items in product family

Baldor-Reliance Intergral Tach DC Motor, CDPT3605, 5 HP, 1750 RPM, TEFC, 1810ATC Frame

Item #: WBB910230

Sold By: globalindustrial.com

Usually ships in 5 to 8 days Estimated lead times do not include weekends or holidays. Transit time is determined by shipping method and destination. Orders requiring credit information might take additional time.

0 reviews | Write a review

Price: $ 4,282.00
Product Information
Customer Review
Product Q&A
Baldor-Reliance Intergral Tach DC Motor, CDPT3605, 5 HP, 1750 RPM, TEFC, 1810ATC Frame

Baldor-Reliance has designed a Permanent Magnet DC Motor with an integral 50 VDC per 1000 RPM precision tachometer. Its compact design fits into many locations where a conventional motor won't fit. Plus it is less costly than buying the motor, tach kit and tachometer. Applications include precision metering pumps and tensioning.

Features
  • Provides an integral 50 VDC per 1000 RPM precision tachometer for closed loop drive system
  • Class F insulation
  • 20:1 constant torque speed range with NEMA Type control
  • 3300P motors TENV, all others are TEFC
Application(s)
  • Conveyors and metering pumps where precise speed regulation is required.

Documents are in PDF format

Product Specifications

    • HORSEPOWER5
    • ENCLOSURETEFC
    • FRAME1810ATC
    • BRANDBaldor-Reliance
    • MOUNTINGC-Face Rigid
    • MOTOR RPM 60Hz1750
    • RPM1750
    • VOLTAGE50
    • AMBIENT TEMP C40
    • ENCLOSURE TYPETotally Enclosed
    • OPPOSITE END BEARING6206
    • RPM RANGE1701-1800
    • DRIVE END BEARING SIZE6206
    • BALDOR CATALOG NUMBERCDPT3605
    • SPECIFICATION NUMBER36P129Z509
    • FL AMPS24.5
    • TYPEIntergral Tach DC Motor
    • FIELD VOLTAGE180
    • ARMATURE VOLTAGE180
    • INSULATION CLASSF
