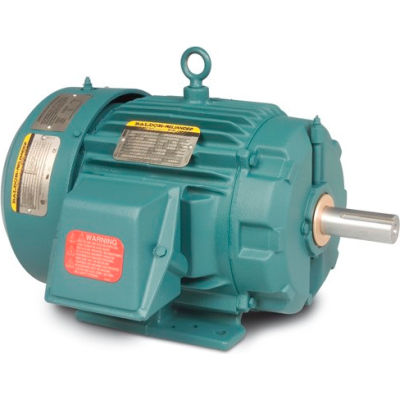

Baldor-Reliance Motor CECP83665T-5, 5HP, 1750RPM, 3PH, 60HZ, L184TC, TEFC, FOOT

Actual product may differ from image shown

Baldor-Reliance Motor CECP83665T-5, 5HP, 1750RPM, 3PH, 60HZ, L184TC, TEFC, FOOT

Item #: WBB388808

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,457.00 up to 20% OFF

Price: $1,164.00

$194.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,164.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 5HP,1750RPM,3PH,60HZ,L184TC,TEFC,FOOT,

Features:
  • Designed and manufactured and tested to exceed the IEEE 841-1994 standards for severe duty TEFC induction motors
  • Premium efficiency copper windings using Baldor-Reliance ISR (Inverter Spike Resistant)® magnet wire comply with CEE efficiency guidelines
  • Inpro Seal® on fan and drive end shaft extensions
  • 2-part yellow epoxy oxide primer (inside & outside)
  • Gray epoxy paint and corrosion resistant hardware
  • Reduced noise, vibration and mechanical tolerances
  • Final test and vibration results shipped with motor
Typical Applications:
Typical applications include petro-chemical, pulp and paper plants, mines and other installations requiring premium efficient motors manufactured and tested to rigid standards for severe duty service.

Product Specifications

  • HORSEPOWER5
  • ENCLOSURETEFC
  • FRAME184TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1750
  • RPM1750
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6206
  • RPM RANGE1701-1800
  • # OF ROTOR BARS28
  • is_motorYes
  • KVA-CODEK
  • POWER-FACTOR80
  • FL EFFICIENCY90.2
  • MAX. KVAR1.1
  • TEMP. CODET3
  • GREASEPOLYREX EM
  • SERIAL-NUMBER--
  • SPEC. NUMBER06H770W570G1
  • # OF STATOR SLOTS36
  • BEARING-DRIVE-END6206
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS5.2
  • MAX. SPACE HEATER TEMP.N/A
  • MANUFACTURER PART #CECP83665T-5
  • SPACE-HEATER-AMPSN/A
  • WEIGHT LBS.147
  • SPACE-HEATER-VOLTSN/A
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES17.88
  • POLES4
  • INSULATION CLASSF
