Baldor-Reliance Motor ECP64316TR-4, 75HP, 1780RPM, 3PH, 60HZ, 365T, TEFC, FOOT

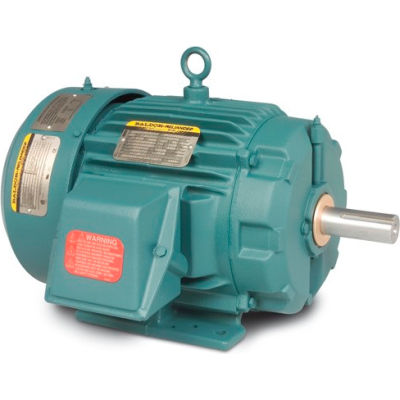

Actual product may differ from image shown

Baldor-Reliance Motor ECP64316TR-4, 75HP, 1780RPM, 3PH, 60HZ, 365T, TEFC, FOOT

Item #: WBB390245

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$11,149.00 up to 20% OFF

Price: $8,902.00

$1,483.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $8,902.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 75HP,1780RPM,3PH,60HZ,365T,TEFC,FOOT,

Features:
  • NEMA premium efficiency
  • Motors meet IEEE 841 specifications for the chemical industry and incorporate roller bearings on 210 frames and larger for heavy belt loads
  • VBX / VBXX Inpro bearing isolators on both ends
  • Shaft up requires removing plug in upper end and reversing drain
  • Motors have RTV sealed end bracket-to-frame fits and epoxy coated rotor and stator
  • Motors are inverter ready
  • 5-year warranty
Typical Applications:
Petroleum, chemical and other industries with belt driven heat exchangers requiring premium efficient motors designed to API 661 standards of 40,000 hours bearing life.

Product Specifications

  • HORSEPOWER75
  • ENCLOSURETEFC
  • FRAME365T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1780
  • RPM1780
  • PHASE3
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6313
  • DUTYContinuous
  • RPM RANGE1701-1800
  • CLASS-II-DIV-2-NON-XPX X X
  • # OF ROTOR BARS47
  • EFFICIENCY-295
  • EFFICIENCY-3--
  • EFFICIENCY-195.3
  • MANUFACTURING-NUMBER--
  • MAX. KVAR16
  • GREASEMOBILITH SHC220
  • IDENTIFICATION NUMBERP36G33369
  • # OF STATOR SLOTS60
  • CLASS-I-DIV-2-NON-XPABCD
  • CLASS-I-ZONE-2-GROUPIIAIIBIIC
  • IEEE-TEST90DBA
  • WARRANTY--
  • RESISTANCE0.08438
  • MANUFACTURER PART #ECP64316TR-4
  • TEMPERATURE180
  • WEIGHT LBS.951
  • TYPEP
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES33.44
  • INSULATION CLASSF
  • KVA-CODEG
  • is_motorYes
  • POWER-FACTOR86
  • FL EFFICIENCY95.4
  • TEMP. CODET3A
  • SERIAL-NUMBER--
  • SPEC. NUMBERP36G3369
  • BEARING-DRIVE-ENDNU313
  • DESIGN CODEB
  • FL AMPS26.6
  • POLES4
