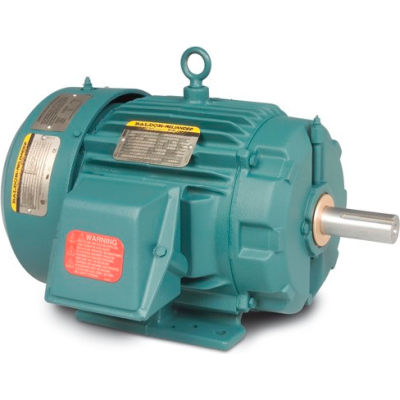

Baldor-Reliance Motor ECP84312T-5, 50HP, 1185RPM, 3PH, 60HZ, 365T, TEFC, FOOT

Actual product may differ from image shown

Baldor-Reliance Motor ECP84312T-5, 50HP, 1185RPM, 3PH, 60HZ, 365T, TEFC, FOOT

Item #: WBB390527

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$10,012.00 up to 20% OFF

Price: $7,994.00

$1,332.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,994.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 50HP,1185RPM,3PH,60HZ,365T,TEFC,FOOT,

Features:
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Typical Applications:
Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Product Specifications

  • HORSEPOWER50
  • ENCLOSURETEFC
  • FRAME365T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1185
  • RPM1185
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6313
  • DUTYContinuous
  • RPM RANGE1101-1200
  • BRG-ODE-AFBMA65BC03J30X
  • CLASS-II-DIV-2-NON-XPX X X
  • # OF ROTOR BARS55
  • EFFICIENCY-293.6
  • EFFICIENCY-3--
  • EFFICIENCY-194.4
  • MANUFACTURING-NUMBER--
  • MAX. KVAR14
  • GREASEPOLYREX EM
  • IDENTIFICATION NUMBERP36G5245
  • # OF STATOR SLOTS72
  • CLASS-I-DIV-2-NON-XPABCD
  • CLASS-I-ZONE-2-GROUPIIAIIBIIC
  • BRG-DE-AFBMA65BC03J30X
  • NL AMPS16.7
  • IEEE-TEST90DBA
  • WARRANTY--
  • WINDING RESISTANCE0.2027
  • RESISTANCE--
  • MANUFACTURER PART #ECP84312T-5
  • TEMPERATURE200
  • WEIGHT LBS.890
  • TYPEP
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES33.44
  • INSULATION CLASSF
  • KVA-CODEF
  • is_motorYes
  • POWER-FACTOR81
  • FL EFFICIENCY94.1
  • TEMP. CODET3C
  • SERIAL-NUMBER--
  • SPEC. NUMBERP36G5245
  • BEARING-DRIVE-END6313
  • DESIGN CODEB
  • FL AMPS49.3
  • POLES6
