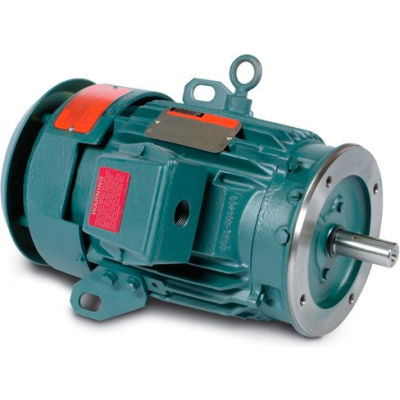

Baldor-Reliance Motor VECP3581-4, 1HP, 1765RPM, 3PH, 60HZ, 56C, 0524M, TEFC, F1, N

Actual product may differ from image shown

Baldor-Reliance Motor VECP3581-4, 1HP, 1765RPM, 3PH, 60HZ, 56C, 0524M, TEFC, F1, N

Item #: WBB391219

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$964.00 up to 20% OFF

Price: $771.00

$128.50 / month suggested monthly payments with 6 mo. special financing on the purchase of $771.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1765RPM,3PH,60HZ,56C,0524M,TEFC,F1,N

Features:
  • Super-E premium efficient motor
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Typical Applications:
Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEFC
  • FRAME56C
  • BRANDBaldor-Reliance
  • MOUNTINGNo Mounting
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • VOLTAGE460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6205
  • RPM RANGE1701-1800
  • 208V AMPS--
  • KVA-CODEN
  • is_motorYes
  • POWER-FACTOR70
  • FL EFFICIENCY87.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER05E998W751G1
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • DOE-CODE--
  • FL AMPS1.5
  • MANUFACTURER PART #VECP3581-4
  • WEIGHT LBS.64
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES13.32
  • POLES4
  • INSULATION CLASSF
