Baldor-Reliance Severe Duty Motor, ECP84406T-5, 3 PH, 150 HP, 575 V, 1785 RPM, TEFC, 445T Frame

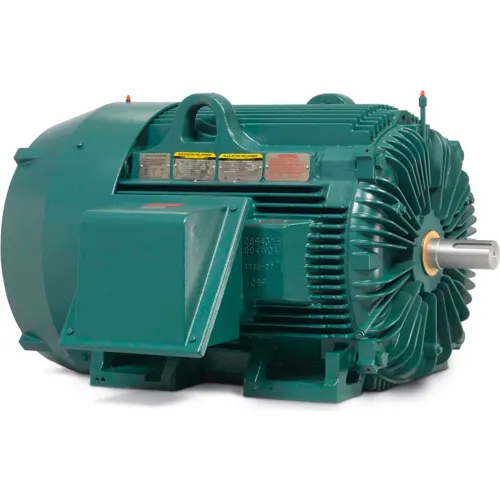

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, ECP84406T-5, 3 PH, 150 HP, 575 V, 1785 RPM, TEFC, 445T Frame

Item #: WBB909238

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

$21,521.00 up to 27% OFF

Price: $15,811.00

$2,635.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84406T-5, 3 PH, 150 HP, 575 V, 1785 RPM, TEFC, 445T Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Application(s)
  • Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

  • HORSEPOWER 150
  • ENCLOSURE TEFC
  • FRAME 445T
  • BRAND Baldor-Reliance
  • MOTOR RPM 60Hz 1785
  • RPM 1785
  • PHASE 3
  • VOLTAGE 575
  • HERTZ 60
  • SERVICE FACTOR 1.15
  • ENCLOSURE TYPE Totally Enclosed
  • OPPOSITE END BEARING 6318
  • DUTY Continuous
  • RPM RANGE 1701-1800
  • INSULATION CLASS F
  • C-DIMENSION INCHES 44.75
  • TYPE Severe Duty Motor
  • MANUFACTURER PART # ECP84406T-5
  • FL AMPS 132
  • DESIGN CODE B
  • BEARING-DRIVE-END 6318
  • SPEC. NUMBER ECP84406T-5
  • GREASE POLYREX EM
  • EFFICIENCY-1 96.4
  • POWER-FACTOR 88.5
  • is_motor Yes
  • KVA-CODE G
  • EFFICIENCY-2 95.8
