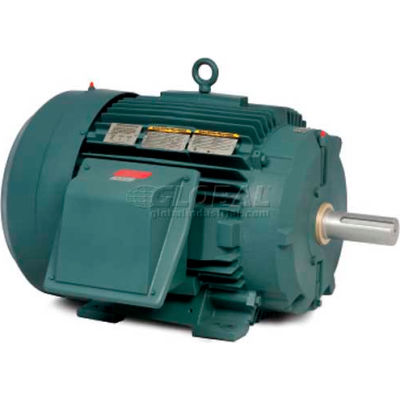

Baldor-Reliance Severe Duty Motor, ECP84313T-5, 3 PH, 75 HP, 575 V, 3555 RPM, TEFC, 365TS Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, ECP84313T-5, 3 PH, 75 HP, 575 V, 3555 RPM, TEFC, 365TS Frame

Item #: WBB909791

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $9,013.00

$1,502.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $9,013.00 or save 3% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, ECP84313T-5, 3 PH, 75 HP, 575 V, 3555 RPM, TEFC, 365TS Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Built to 841XL design
  • Upgraded electrical and mechanical design with NEMA Premium® efficient winding
  • Inpro/Seal® VBX (thru 210 frame)
  • VBXX bearing isolators on fan and drive end shaft extensions
  • Epoxy paint provides IP56 enclosure
  • Stainless breather drains
  • Proprietary cast iron frames for reduced vibration and noise
  • Terminal lugs on motor leads
  • 5-year warranty
Application(s)
  • Petro-chemical, pulp and paper, cement, aggregate mining and other process industries requiring premium efficient motors designed, manufactured and tested to exceed IEEE 841-2001 TEFC motor standards for extreme severe duty service.

Product Specifications

  • HORSEPOWER75
  • ENCLOSURETEFC
  • FRAME365TS
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz3555
  • RPM3555
  • PHASE3
  • VOLTAGE575
  • HERTZ60
  • SERVICE FACTOR1.15
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6313
  • DUTYContinuous
  • RPM RANGE3001-3600
  • is_motorYes
  • EFFICIENCY-294.5
  • KVA-CODEF
  • POWER-FACTOR92
  • FL EFFICIENCY95
  • EFFICIENCY-195.4
  • GREASEPOLYREX EM
  • SPEC. NUMBERP36G5241
  • BEARING-DRIVE-END6313
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERECP84313T-5
  • FL AMPS64.5
  • MANUFACTURER PART #ECP84313T-5
  • TYPESevere Duty Motor
  • C-DIMENSION INCHES31.31
  • INSULATION CLASSF
