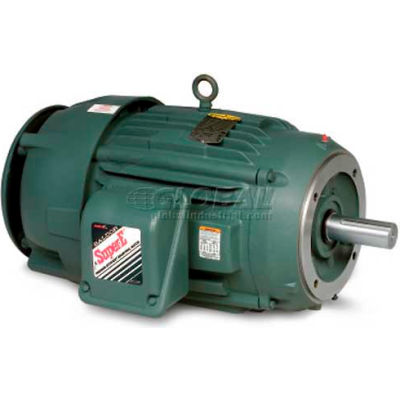

Baldor-Reliance Severe Duty Motor, VECP2332T, 3 PH, 10 HP, 230/460 V, 1180 RPM, TEFC, 256TC Frame

Actual product may differ from image shown

Baldor-Reliance Severe Duty Motor, VECP2332T, 3 PH, 10 HP, 230/460 V, 1180 RPM, TEFC, 256TC Frame

Item #: WBB909172

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $2,990.00

$498.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,990.00 or save 3% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Severe Duty Motor, VECP2332T, 3 PH, 10 HP, 230/460 V, 1180 RPM, TEFC, 256TC Frame

Severe Duty motors are available from 1 HP to 700 HP. These products are especially designed for those applications requiring protection of the motors from severe environmental operating conditions. A few typical applications which might require these types of motors include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, rock crushers, and chemical plants.

Features
  • Super-E premium efficient motor
  • 1.15 Service Factor
  • Corrosion resistant epoxy finish
  • Regreasable ball bearings
  • Oversized rotatable cast iron conduit box
  • Forsheda® shaft seal
  • Moisture resistant copper windings
  • Class F insulation
  • Stainless steel nameplate and corrosion resistant hardware
  • Tropicalized
Application(s)
  • Typical applications include petro-chemical plants, mines, foundries, pulp and paper plants, waste management facilities, chemical plants, tropical climates and other processing industry applications requiring protection against corrosion caused by severe environmental operationg conditions.

Product Specifications

  • HORSEPOWER10
  • ENCLOSURETEFC
  • FRAME256TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1180
  • RPM1180
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6309
  • DUTYContinuous
  • RPM RANGE1101-1200
  • 208V AMPS30
  • KVA-CODEJ
  • is_motorYes
  • POWER-FACTOR72
  • FL EFFICIENCY91.7
  • SPEC. NUMBER09H181X826
  • BEARING-DRIVE-END6309
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERVECP2332T
  • DOE-CODE010A
  • FL AMPS28.4/14.2
  • MANUFACTURER PART #VECP2332T
  • TYPESevere Duty Motor
  • C-DIMENSION INCHES27.69
  • INSULATION CLASSF
