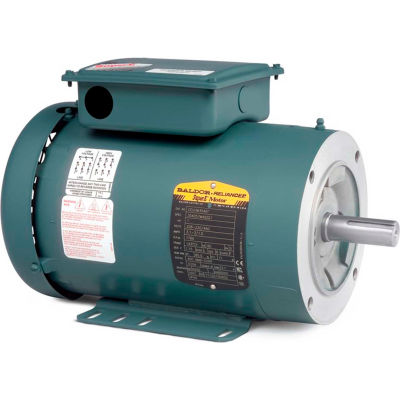

Baldor-Reliance Motor CEUHM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TYC, 3532M, TEFC, F

Baldor-Reliance Motor CEUHM3558T, 2HP, 1725RPM, 3PH, 60HZ, 145TYC, 3532M, TEFC, F

Item #: WBB388732

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$698.00 up to 20% OFF

Price: $558.00

$93.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $558.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 2HP,1725RPM,3PH,60HZ,145TYC,3532M,TEFC,F

Features:
  • UL/CSA recognized and CE certified
  • CEUHM/VEUHM motors are Super-E® with NEMA Premium® efficiency
  • CUHM/VUHM motors are EPAct efficiency and all are inverter-ready
  • 143-145TY and 143-145TYC frame motors have a special base with 56, 143 and 145 slots used on OEM conveyors
  • 56-140 frames have low profile F3 top-mounted conduit box
  • 3 year warranty on Super-E® motors
Typical Applications:
Unit and baggage handling, conveyors, packaging equipment, machine tools, hoists, elevators and door operators.

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETEFC
  • FRAME145TCY
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1755
  • RPM1755
  • PHASE3
  • VOLTAGE208-230/460
  • HERTZ60
  • SERVICE FACTOR1.15
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT52
  • RPM RANGE1701-1800
  • SPECIFICATION NUMBER35X057M494G1
  • 208V AMPS--
  • KVA-CODEL
  • POWER-FACTOR73
  • FL EFFICIENCY86.5
  • SERIAL-NUMBER--
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERCEUHM3558T
  • DOE-CODE--
  • FL AMPS6-5.8/2.9
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES14.17
  • POLES4
  • INSULATION CLASSF
