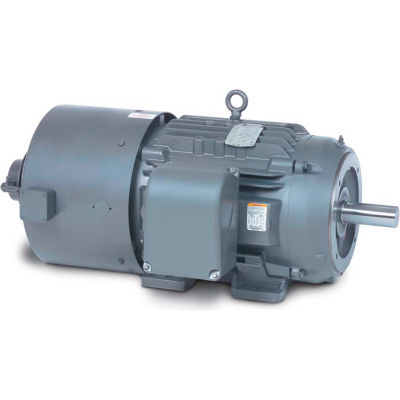

Baldor-Reliance Motor IDM3582T, 1HP, 1150RPM, 3PH, 60HZ, 145TC, 0528M, TEBC, F1

Baldor-Reliance Motor IDM3582T, 1HP, 1150RPM, 3PH, 60HZ, 145TC, 0528M, TEBC, F1

Item #: WBB389883

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,798.00 up to 18% OFF

Price: $1,480.00

$246.67 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,480.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 1HP,1150RPM,3PH,60HZ,145TC,0528M,TEBC,F1

Features:
  • Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
  • Meets NEMA MG 1, Part 31
Typical Applications:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.

Product Specifications

  • HORSEPOWER1
  • ENCLOSURETEBC
  • FRAME145TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1150
  • RPM1150
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT67
  • RPM RANGE1101-1200
  • ROTOR-INERTIA0.166
  • SLIP-HERTZ2.3
  • is_motorYes
  • FL EFFICIENCY82.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER05E535W631G1
  • BLOWER-PHASE1
  • BLOWER-AMPS0.5
  • BLOWER-HERTZ60
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERIDM3582T
  • DOE-CODE--
  • FL AMPS3.6/1.8
  • BLOWER-VOLTS115
  • MAGNETIZING-CURRENT2.4/1.2
  • MAXIMUM-RPM2800
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES19.15
  • POLES6
  • INSULATION CLASSH
