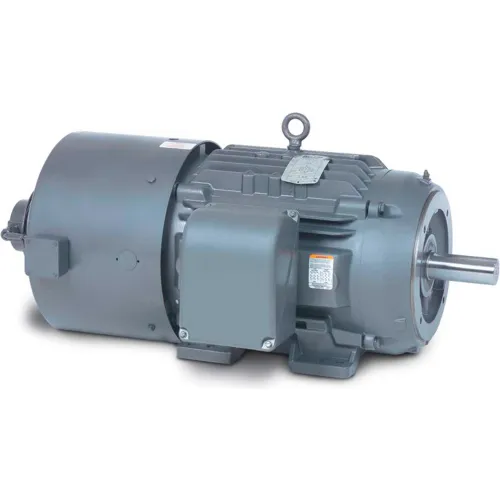

Baldor-Reliance Motor, 15HP,1180RPM,3PH,60HZ,284T,1056M,TEBC,F1
Features:
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
Features:
- Motors include provisions for encoder feedback mounting when used with closed loop velocity or position motor controls
- Meets NEMA MG 1, Part 31
Conveyors, pumps, fans, metal processing, compressors, test stands, and material handling equipment. Designed for inverter or vector applications where up to a 1000:1 constant torque speed range is required.
Weights & Dimensions
- Dimension C 36.48 in
- Opposite End Bearing Size 6309
- Weight 422 lbs
Product Details
- Mounting Location Rigid
- Bearing Drive End 6311
- RPM 1180 rpm
- Poles 6
- Drive End Flange Standard
- Ambient Temperature 40 °C
- Insulation Class H
- RPM Range 1101-1200 rpm
- Voltage 230/460 V
- Frame 284T
- Service Factor 1
- Horsepower 15 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Enclosure TEBC
- Phase 3
- Slip Hertz 0.8 Hz
- Magnetizing Current 19.4/9.7 A
- Full Load Efficiency 93
- Brand Baldor-Reliance
- Full Load Amps 39.4/19.7 FLA
- Design Code A
- Motor RPM 60 Hertz 1180 rpm
- Hertz 60 Hz
- Max RPM 4000 rpm
- Rotor-Inertia 6.86
