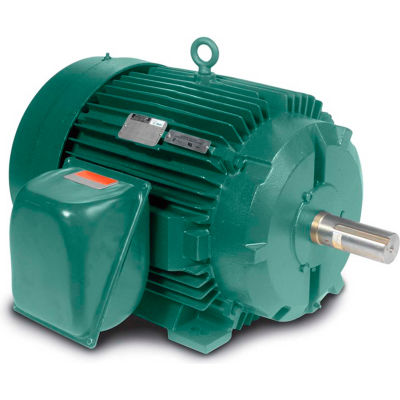

Baldor-Reliance Motor IDVSM2333T, 15HP, 1770RPM, 3PH, 60HZ, 254TC, TEFC, FOOT

Baldor-Reliance Motor IDVSM2333T, 15HP, 1770RPM, 3PH, 60HZ, 254TC, TEFC, FOOT

Item #: WBB389206

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,339.00 up to 18% OFF

Price: $2,747.00

$457.83 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,747.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 15HP,1770RPM,3PH,60HZ,254TC,TEFC,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER15
  • ENCLOSURETEFC
  • FRAME254TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1770
  • RPM1770
  • PHASE3
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT329
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA2.16
  • BRG-ODE-AFBMA45BC03JP30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP25G1153
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2655
  • BALDOR CATALOG NUMBERIDVSM2333T
  • BRG-DE-AFBMA45BC03JP30X
  • CONSTANT-TORQ-HERTZ41.66736111
  • MOTOR-BASE-AMPS36.8/18.4
  • MOTOR-BASE-HP15
  • TYPEP
  • MAGNETIZING-CURRENT13.2/6.6
  • MAXIMUM-RPM5400
  • MOTOR-BASE-VOLTS230/460
  • DRIVE END FLANGEC-Face
  • MOTOR-MAX-AMPS35.8/17.9
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES24.5
  • MOTOR-BASE-RPM1770
  • POLES4
  • RELIANCE NUMBERW00977A A 001
  • MOTOR-MAX-HP15
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
