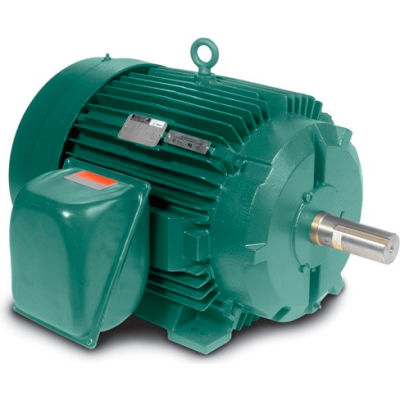

Baldor-Reliance Motor IDVSNM2237T, 7.50HP, 1765RPM, 3PH, 60HZ, L215TC, TENV, FOOT

Baldor-Reliance Motor IDVSNM2237T, 7.50HP, 1765RPM, 3PH, 60HZ, L215TC, TENV, FOOT

Item #: WBB389134

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$2,263.00 up to 18% OFF

Price: $1,862.00

$310.33 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,862.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 7.50HP,1765RPM,3PH,60HZ,L215TC,TENV,FOOT

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER7 1/2
  • ENCLOSURETENV
  • FRAME215TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1765
  • RPM1765
  • PHASE3
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT175
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA1.08
  • BRG-ODE-AFBMA30BC03JP30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP21G1162
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2650
  • BALDOR CATALOG NUMBERIDVSNM2237T
  • BRG-DE-AFBMA35BC02JP30X
  • CONSTANT-TORQ-HERTZ41.66736111
  • MOTOR-BASE-AMPS18.4/9.2
  • MOTOR-BASE-HP7.5
  • TYPEP
  • MAGNETIZING-CURRENT7/3.5
  • MAXIMUM-RPM6200
  • MOTOR-BASE-VOLTS230/460
  • DRIVE END FLANGEC-Face
  • MOTOR-MAX-AMPS17.6/8.8
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES19.25
  • MOTOR-BASE-RPM1765
  • POLES4
  • RELIANCE NUMBERE02620A A 001
  • MOTOR-MAX-HP7.5
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
