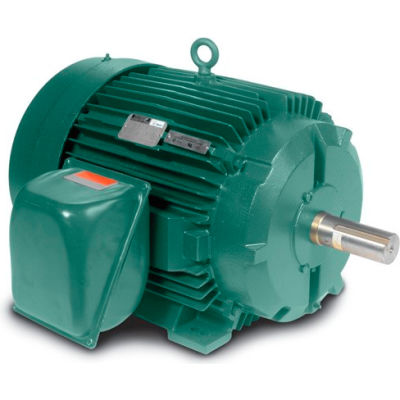

Baldor-Reliance Motor IDVSNM3661T, 3HP, 1750RPM, 3PH, 60HZ, 182TC, TENV, FOOT

Baldor-Reliance Motor IDVSNM3661T, 3HP, 1750RPM, 3PH, 60HZ, 182TC, TENV, FOOT

Item #: WBB389326

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$1,518.00 up to 5% OFF

Price: $1,441.00

$240.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $1,441.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,1750RPM,3PH,60HZ,182TC,TENV,FOOT,

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETENV
  • FRAME182TC
  • BRANDBaldor-Reliance
  • MOTOR RPM 60Hz1750
  • RPM1750
  • PHASE3
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT126
  • DUTYContinuous
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.34
  • BRG-ODE-AFBMA25BC03JP30X
  • is_motorYes
  • TEMP. CODE2
  • SERIAL-NUMBER--
  • SPEC. NUMBERP18G1188
  • MOTOR-MAX-HZ90
  • MOTOR-MAX-RPM2625
  • BALDOR CATALOG NUMBERIDVSNM3661T
  • BRG-DE-AFBMA30BC02JP30X
  • CONSTANT-TORQ-HERTZ1000 1
  • MOTOR-BASE-AMPS7.6/3.8
  • MOTOR-BASE-HP3
  • TYPEP
  • MAGNETIZING-CURRENT2.8/1.4
  • MAXIMUM-RPM6200
  • DRIVE END FLANGEC-Face
  • MOTOR-BASE-VOLTS230/460
  • MOTOR-MAX-AMPS7.2/3.6
  • MOTOR-BASE-HZ60
  • C-DIMENSION INCHES14.69
  • MOTOR-BASE-RPM1750
  • POLES4
  • RELIANCE NUMBERE01384EJYM006
  • MOTOR-MAX-HP3
  • INSULATION CLASSF
  • MOTOR-MAX-VOLTS230/460
