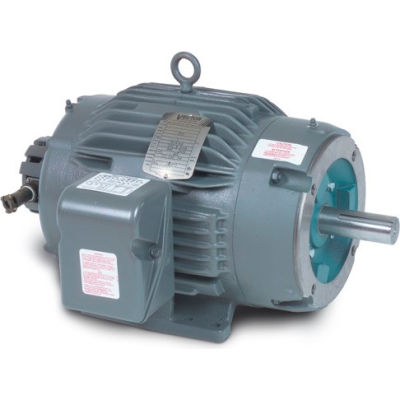

Baldor-Reliance Motor ZDM4102T, 20HP, 1180RPM, 3PH, 60HZ, 286T, 1062M, TEBC, F1

Baldor-Reliance Motor ZDM4102T, 20HP, 1180RPM, 3PH, 60HZ, 286T, 1062M, TEBC, F1

Item #: WBB391969

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$9,171.00 up to 18% OFF

Price: $7,542.00

$1,257.00 / month suggested monthly payments with 6 mo. special financing on the purchase of $7,542.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 20HP,1180RPM,3PH,60HZ,286T,1062M,TEBC,F1

Features:
  • Full torque at zero speed
  • 1000:1 constant torque range
  • Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • C-Face with base 143TC thru 449TC
  • Base mount only in frames 5007L-5009L
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.

Product Specifications

  • HORSEPOWER20
  • ENCLOSURETEBC
  • FRAME286T
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1180
  • RPM1180
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6309
  • WEIGHT476
  • RPM RANGE1101-1200
  • ROTOR-INERTIA7.59
  • SLIP-HERTZ0.85
  • is_motorYes
  • FL EFFICIENCY93
  • SERIAL-NUMBER--
  • SPEC. NUMBER10F206X978Z1
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6311
  • DESIGN CODEA
  • BALDOR CATALOG NUMBERZDM4102T
  • DOE-CODE--
  • FL AMPS52/26
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT24.6/12.3
  • MAXIMUM-RPM4000
  • DRIVE END FLANGEStandard
  • C-DIMENSION INCHES36.48
  • POLES6
  • INSULATION CLASSH
