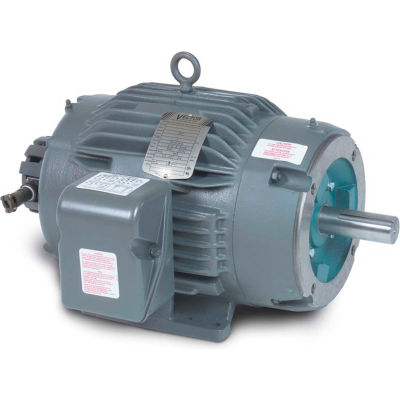

Baldor-Reliance Motor ZDNM3661T, 3HP, 1750RPM, 3PH, 60HZ, 184TC, 0634M, TENV, F1

Baldor-Reliance Motor ZDNM3661T, 3HP, 1750RPM, 3PH, 60HZ, 184TC, 0634M, TENV, F1

Item #: WBB392162

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,124.00 up to 18% OFF

Price: $2,569.00

$428.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,569.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 3HP,1750RPM,3PH,60HZ,184TC,0634M,TENV,F1

Features:
  • Full torque at zero speed
  • 1000:1 constant torque range
  • Totally Enclosed Non Ventilated (TENV) or Totally Enclosed Blower Cooled (TEBC)
  • 1/3 thru 500 horsepower
  • Cast Iron construction
  • C-Face with base 143TC thru 449TC
  • Base mount only in frames 5007L-5009L
  • Class H Insulated
  • ISR® (Inverter Spike Resistant) magnet wire
  • Meets NEMA MG 1, Part 31
Typical Applications:
Test stands, material handling, packaging equipment, printing presses, etc. Applications requiring adjustable speed operation with full torque from zero to base speed and constant horseposer to maximum speed.

Product Specifications

  • HORSEPOWER3
  • ENCLOSURETENV
  • FRAME184TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1750
  • RPM1750
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6205
  • WEIGHT108
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.319
  • SLIP-HERTZ1.6
  • is_motorYes
  • FL EFFICIENCY88.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER06F550W401Z4
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6206
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERZDNM3661T
  • DOE-CODE--
  • FL AMPS8/4
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT4/2
  • MAXIMUM-RPM6000
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES17.21
  • POLES4
  • INSULATION CLASSH
