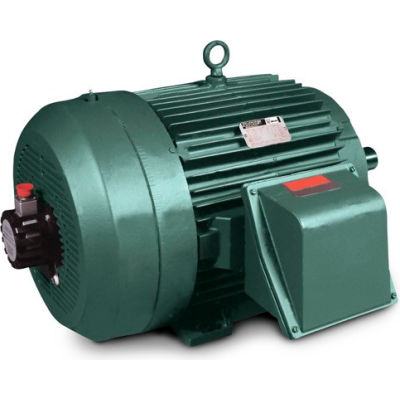

Baldor-Reliance Motor ZDVSNCP3587T, 2HP, 1740RPM, 3PH, 60HZ, 145TC, 0535M, TENV, F1

Baldor-Reliance Motor ZDVSNCP3587T, 2HP, 1740RPM, 3PH, 60HZ, 145TC, 0535M, TENV, F1

Item #: WBB391939

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$3,050.00 up to 18% OFF

Price: $2,509.00

$418.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $2,509.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Baldor-Reliance Motor, 2HP,1740RPM,3PH,60HZ,145TC,0535M,TENV,F1

Features:
  • Designed specifically for Inverter operation where up to 1000:1 constant torque speed range is required
  • Includes provisions for stub shaft for hollow shaft encoder, three thermostats, and all 440T frames include an ODE insulated bearing
  • Insulation system exceeds NEMA MG 1-2006, Part 31.4.4.2
  • Continuous constant torque to zero speed
Typical Applications:
Conveyors, extruders, printing lines, converting, test stands, anywhere constant torque is required over a wide speed range.

Product Specifications

  • HORSEPOWER2
  • ENCLOSURETENV
  • FRAME145TC
  • BRANDBaldor-Reliance
  • MOUNTINGRigid
  • MOTOR RPM 60Hz1755
  • RPM1755
  • PHASE3
  • VOLTAGE230/460
  • HERTZ60
  • SERVICE FACTOR1
  • AMBIENT TEMP C40
  • ENCLOSURE TYPETotally Enclosed
  • OPPOSITE END BEARING6203
  • WEIGHT71
  • RPM RANGE1701-1800
  • ROTOR-INERTIA0.207
  • SLIP-HERTZ1.5
  • is_motorYes
  • FL EFFICIENCY86.5
  • SERIAL-NUMBER--
  • SPEC. NUMBER05F205X131Z1
  • BLOWER-PHASE--
  • BLOWER-AMPS--
  • BLOWER-HERTZ--
  • BEARING-DRIVE-END6205
  • DESIGN CODEB
  • BALDOR CATALOG NUMBERZDVSNCP3587T
  • DOE-CODE--
  • FL AMPS5.6/2.8
  • BLOWER-VOLTS--
  • MAGNETIZING-CURRENT3.2/1.6
  • MAXIMUM-RPM5500
  • DRIVE END FLANGEC-Face
  • C-DIMENSION INCHES14.61
  • POLES4
  • INSULATION CLASSH
