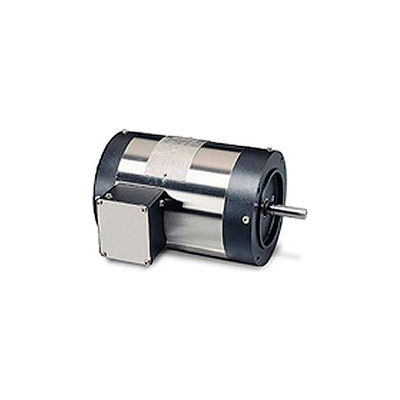

Leeson Motors Motor Washdown Motor-3/4HP, 208-230/460V, 1725RPM, TENV, C FACE, 1.15 SF

Actual product may differ from image shown

Leeson Motors Motor Washdown Motor-3/4HP, 208-230/460V, 1725RPM, TENV, C FACE, 1.15 SF

Item #: WBB228143

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$995.00 up to 55% OFF

Price: $462.95

Save $23.15 with 5% off when you use your Global Industrial Credit Card.

Quantity Discount

  • Buy 1-2 $462.95 ea.
  • Buy 3+ $449.95 ea.

Quantity

Customers Also Viewed

Washguard II Motor with Stainless Steel Frame: 3/4HP, 1725 RPM, Totally-Enclosed Non-Ventilated (TENV) Enclosure, 56 Frame, C FACE, 208-230/460V, 3PH, 60HZ, Name Plate Amps 2.4-2.3/1.15, Continuous duty, 1.15 Service Factor, No thermal protection, Efficiency: 80, Efficiency Type: Standard, Ambient 40 C, Reverse Rotation, Shaft Length: 1-7/8, Shaft Diameter: 5/8.

Superior, extended life in severe environments

  • Paint-free exterior stainless frame and conduit box lid, specially processed endshields and conduit box housing
  • Etched stainless steel nameplate
  • Proven WASHGUARD mechanical and electrical features
  • BISSC certified for baking industry
  • Meets IP55 enclosure protection
  • Three phase motors are suitable for use on VFDs


Product Specifications

  • HORSEPOWER3/4
  • ENCLOSURETENV
  • FRAME56C
  • BRANDLeeson
  • MOUNTINGC-Face Footless
  • MOTOR RPM 60Hz1725
  • RPM1725
  • PHASE3
  • VOLTAGE208-230/460
  • NAMEPLATE AMPS2.4-2.3/1.15
  • COMPATIBLE WITH/REPLACESBaldor VSWDM3542
  • HERTZ60
  • SERVICE FACTOR1.15
  • THERMAL PROTECTIONNo
  • EFFICIENCY TYPEStandard
  • CONSTRUCTIONRolled Steel
  • AMBIENT TEMP C40
  • SHAFT DIAMETER5/8
  • SHAFT LENGTH INCHES1-7/8
  • ROTATIONCCW/CW
  • ENCLOSURE TYPETotally Enclosed
  • WEIGHT37
  • ULY
  • CSAY
  • LEESON MODEL NO.CZ6T17VC11DD
  • UPC69172001391
  • DUTYContinuous
  • RPM RANGE1701-1800
  • is_motorYes
  • FL EFFICIENCY80
  • CATALOG NUMBER114395.00
  • DESIGNSq Cage Inductor Run
  • BEARING-DRIVE-END6205
  • FL AMPS2.4-2.3/1.15
  • MANUFACTURER PART #114395.00
