IKO Roller Follower- Full Comp- Inch, CRY16VUU, Double Sealed, 1" OD

IKO Roller Follower- Full Comp- Inch, CRY16VUU, Double Sealed, 1" OD

Item #: WBB1309801

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Minimum Quantity: 3

Price: $15.50

Save $0.78 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

IKO Roller Follower- Full Comp- Inch, CRY16VUU, Double Sealed, 1" OD

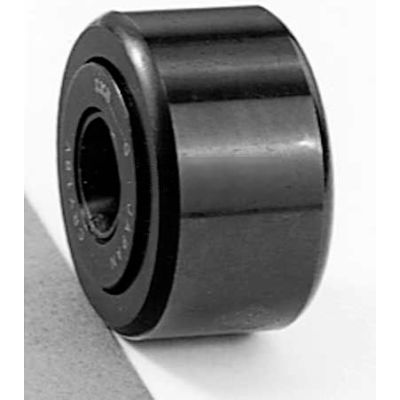

IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

Product Specifications

  • BRANDIKO
  • BEARING STYLECylindrical OD
  • DYNAMIC LOAD RATING (N)13100
  • STATIC LOAD RATING (N)22700
  • OD MM (INCH)25.400 (1)
  • OVERALL WIDTH MM (INCH)17.463 (.6875)
  • BORE DIAMETER MILLIMETERS (INCH)7.938 (5/16)
  • RADIAL CLEARANCE0.035 to 0.060
  • SIDE PLATE OD (A) MM (INCH)19.6 (.772)
  • OUTER RING CORNER RADIUS MIN. MM (INCH)1.191 (3/64)
  • TOLERANCE OUTER RING WIDTH (MM)+0 / -0.130
  • TOLERANCE OVERALL WIDTH (MM)+0.130 / -0.250
  • OUTER RING WIDTH MM (INCH)15.875 (5/8)
  • SHAFT DIA DRIVE FIT (MM)7.935 to 7.945
  • SHAFT DIA PRESS FIT (MM)7.940 to 7.950
  • SHAFT DIA PUSH FIT (MM)7.920 to 7.930
  • PREPACKED GREASEYES
  • TRACK CAPACITY (N)7270
  • CROWN RADIUS (R) mm (inch)--
  • NEEDLE CONSTRUCTIONFull Compliment
  • RETAINERNone
  • OIL HOLE & GROOVEAt inner ring
  • SERIESCRY
  • TYPEDouble Sealed
  • DESCRIPTIONRoller Follower - Full Compliment - Inch Series
  • MANUFACTURERS PART NUMBERCRY16VUU
  • O.D. TOLERANCE (mm)+0 / -0.025
  • BORE TOLERANCE (mm)+0.005 / -0.010
