IKO

Model # :WBB1173531

MPN #: CRH28VBUUR

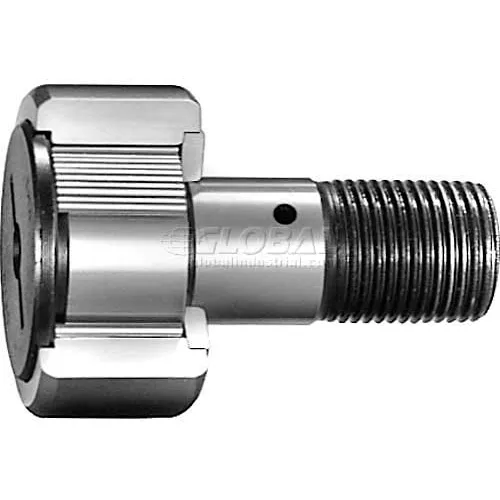

IKO Cam Follower-INCH HD Full Comp Crowned OD Hex Hole DBL Sealed 1-3/4" OD 1"W 1-14 UNS THR

Product Description
IKO Cam Follower-INCH, Heavy Duty, Full Complement, Crowned OD, Hex Hole, Double Sealed, 1-3/4" OD, 1" Width, 1-14 UNS Thread

IKO Cam Followers consist of needle rollers, stud acting inner ring raceway and thick-walled outer ring to withstand heavy rolling or shock loads. Cam Followers are available with cylindrical or crowned outer rings. The crowned outer ring alleviates uneven loads resulting from deflection, bending or misalignment in mounting. There are two internal designs available; one with a cage for high speed, and another with a full complement for heavy loads. Cam Followers are follower bearings for cam mechanisms or linear motions, and widely used for machine tools, industrial robots, electronic devices and office automation equipment utilizing their high rigidity and accuracy. These cam followers are provided with pre-packed grease. Sufficient lubrication is also needed between cam followers and steel track on which cam followers run, to prevent seizure and to reduce friction. An appropriate nut is supplied with the stud.

PRICE
$60.95

Min. purchase quantity is 2
2
2
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Clamping Diameter (F) Minimum32.941 (1-19/64)
Static Load Rating55600 N
Outside Dimension Tolerance+0 / -0.50 mm
Outside Dimension (D)44.450 (1-3/4)
Width (C) Tolerance+0 / -0.130
Max Torque258 lb-in
Dimension B27.4mm (1.08")
Width (C)25.400 (1)
Dimension G22.381mm (3/32")
Crown Radius (R)500 (20) in
Dimension B244.450mm (1-3/4")
Dimension C11.588mm (1/16) in
Dimension H7.938mm (5/16")
Tolerance For Mounting Hole+0.041 / +0.020 (+.0016 / +.0008)
Stud Diameter (D1)25.400 (1)
Tolerance For Stud Diameter+0.25 / -0 mm
Dimension B311.112mm (7/16")
Dimension G122.225mm (7/8")

Product Details

Thread (G) UNF1-14 UNS
Bearing StyleCrowned OD
Manufacturers Part NumberCRH28VBUUR
BrandIKO
TypeDouble Sealed
Dynamic Load Rating (N)35300
Oil HoleStud End, Stud Outside
SeriesCR
Needle ConstructionFull Complement
Radial Clearance0.010 to 0.030
Temperature Range-20-120 °F
Track Capacity4210 N
DescriptionHex Hole
