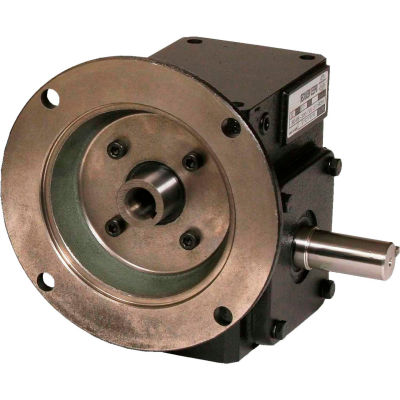

Worldwide HdRF206-15/1-R-56C Cast Iron Right Angle Worm Gear Reducer 15:1 Ratio 56C Frame

Worldwide HdRF206-15/1-R-56C Cast Iron Right Angle Worm Gear Reducer 15:1 Ratio 56C Frame

Item #: WBB1856578

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

$344.00 up to 30% OFF

Price: $239.95

Save $12.00 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Worldwide HdRF206-15/1-R-56C Cast Iron Right Angle Worm Gear Reducer 15:1 Ratio 56C Frame

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:
  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint

Product Specifications

  • OUTPUT SPEED (RPM)120
  • OVERHUNG LOAD LBS.700
  • EFFICIENCY85
  • NEMA FRAME56C
  • BRANDWorldWide Electric Corporation
  • CROSS REFERENCEBoston F721; Grove BMQ220
  • MANUFACTURERS PART NUMBERHdRF206-15/1-R-56C
  • DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
  • BACKLASH (FT.) (ANGULAR MINUTES)17
  • OUTPUT SHAFT THRUST LOAD (LBS.)750
  • MAX INPUT HP2.09
  • MAX TORQUE (IN-LBS.)1002
  • WCD CENTER INCHES2.06
  • GEAR RATIO15:1
