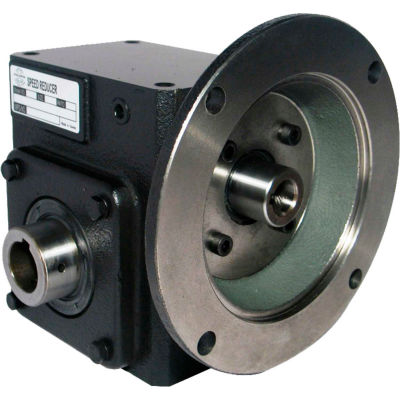

Worldwide HdRF325-30/1-H-145TC Cast Iron Right Angle Worm Gear Reducer 30:1 Ratio 145T Frame

Worldwide HdRF325-30/1-H-145TC Cast Iron Right Angle Worm Gear Reducer 30:1 Ratio 145T Frame

Item #: WBB1856728

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $547.00

$91.17 / month suggested monthly payments with 6 mo. special financing on the purchase of $547.00 or save 5% on purchase.

Quantity

Customers Also Viewed

Worldwide HdRF325-30/1-H-145TC Cast Iron Right Angle Worm Gear Reducer 30:1 Ratio 145T Frame

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:
  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint

Product Specifications

  • OUTPUT SPEED (RPM)58
  • OVERHUNG LOAD LBS.1200
  • EFFICIENCY77
  • NEMA FRAME145TC
  • BRANDWorldWide Electric Corporation
  • MANUFACTURERS PART NUMBERHdRF325-30/1-H-145TC
  • CROSS REFERENCEBoston HF732; Grove HMQ232
  • BACKLASH (FT.) (ANGULAR MINUTES)15
  • DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
  • OUTPUT SHAFT THRUST LOAD (LBS.)1200
  • MAX TORQUE (IN-LBS.)3045
  • MAX INPUT HP3.66
  • WCD CENTER INCHES3.25
  • GEAR RATIO30:1
