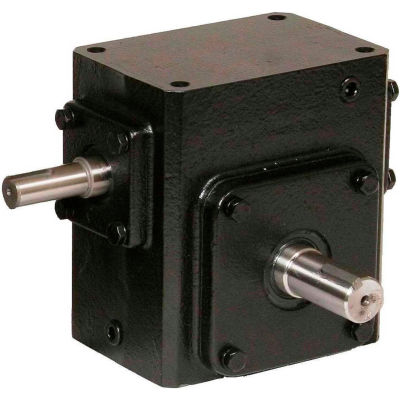

Worldwide HdRS206-60/1-R Cast Iron Right Angle Worm Gear Reducer 60:1 Ratio

Worldwide HdRS206-60/1-R Cast Iron Right Angle Worm Gear Reducer 60:1 Ratio

Item #: WBB1856479

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $193.95

Save $9.70 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Worldwide HdRS206-60/1-R Cast Iron Right Angle Worm Gear Reducer 60:1 Ratio

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:
  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint

Product Specifications

  • OUTPUT SPEED (RPM)29
  • OVERHUNG LOAD LBS.700
  • EFFICIENCY58
  • BRANDWorldWide Electric Corporation
  • MANUFACTURERS PART NUMBERHdRS206-60/1-R
  • CROSS REFERENCEBoston 721; Grove B220
  • DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
  • BACKLASH (FT.) (ANGULAR MINUTES)17
  • OUTPUT SHAFT THRUST LOAD (LBS.)750
  • MAX INPUT HP0.6
  • MAX TORQUE (IN-LBS.)750
  • WCD CENTER INCHES2.06
  • GEAR RATIO60:1
