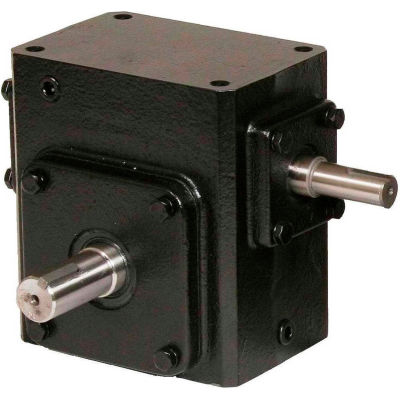

Worldwide HdRS237-5/1-L Cast Iron Right Angle Worm Gear Reducer 5:1 Ratio

Worldwide HdRS237-5/1-L Cast Iron Right Angle Worm Gear Reducer 5:1 Ratio

Item #: WBB1856598

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $214.95

Save $10.75 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Worldwide HdRS237-5/1-L Cast Iron Right Angle Worm Gear Reducer 5:1 Ratio

Cast Iron Worm Gear Reducers are available in center distances 1.33 - 3.25 inches in ratio's from 5:1 to 60:1. The units have a one piece #Fc20 all cast iron housing, NEMA motor quill style input flanges or shaft inputs, come pre-filled with synthetic oil and have a 1 year warranty.

Features:
  • Tapered roller bearings on the input and output shafts
  • Embedded double-lip oil seals
  • Anti-rust primer applied inside and outside of the gearbox
  • Air dry special black paint

Product Specifications

  • OUTPUT SPEED (RPM)350
  • OVERHUNG LOAD LBS.900
  • EFFICIENCY93
  • BRANDWorldWide Electric Corporation
  • MANUFACTURERS PART NUMBERHdRS237-5/1-L
  • CROSS REFERENCEBoston 724; Grove B224
  • BACKLASH (FT.) (ANGULAR MINUTES)17
  • DESCRIPTIONCast Iron Right Ange Worm Gear Reducer
  • OUTPUT SHAFT THRUST LOAD (LBS.)900
  • MAX INPUT HP4.32
  • MAX TORQUE (IN-LBS.)766
  • WCD CENTER INCHES2.37
  • GEAR RATIO5:1
