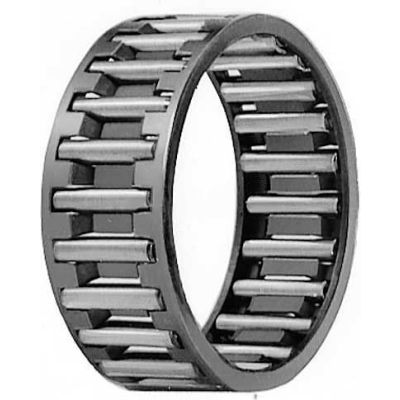

IKO Needle Roller Cage Assembly, 25mm Bore, 30mm OD, 17mm Width, Steel Cage Material
IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2µmRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
IKO Needle Roller Cage Assembly consists of needle rollers with extremely high accuracy and specially designed cage. These products are suitable to use in limited spaces, combining with shafts and housings. 0.2µmRa or less surface finish and HRC 58 to 64 hardness are recommended for the shaft and housing. If the surface hardness is low, load ratings become lower than values described. Due to their lightweight, high rigidity and lubricant holding design, these products can withstand severe operating conditions such as high speed and shock load.
- BRAND IKO
- DYNAMIC LOAD RATING (N) 17300
- STATIC LOAD RATING (N) 26600
- BORE (mm) +0.020 / +0.007
- SHAFT DIAMETER MM +0 / -0.009
- MAX SPEED / GREASE (RPM) 10000
- MANUFACTURERS PART NUMBER KT253017C3
- SERIES KT
- TOLERANCE CAGE WIDTH (mm) -0.20 / -0.55
- TOLERANCE ROLLER DIAMETER (mm) +0 / -0.003
- WIDTH (Bc) (mm) 17
- OD (Ew) (mm) 30
- BORE (Fw) mm/inch 25
- CAGE MATERIAL Steel
- TEMPERATURE RANGE °C -20 to +120
- MAX SPEED / OIL (RPM) 20000
