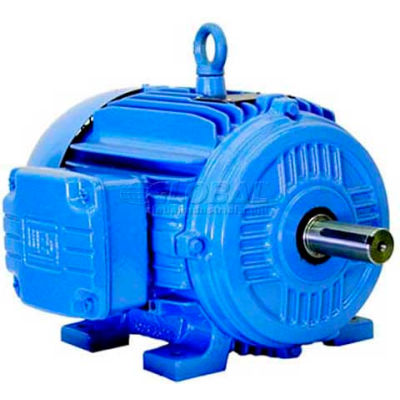

Actual product may differ from image shown
Price: $1,335.00
$222.50/mo
suggested payments with 6 month special financing OR Save 5%on Purchase.
Customers Also Viewed
WEG NEMA Premium Efficiency Motor, 01018ET3E215T-W22, 10 HP, 1800 RPM, 208-230/460V, TEFC, 215T, 3PH
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
TEFC motors are built according to NEMA specifications and designed for operation in moist or dust atmospheric conditions without affecting their useful life. Premium Efficiency WEG motors are tested according to IEEE 112 std., method 'B' and their efficiency values are certified by UL Labs (CSA C390). Motors will meet Design B torques, maintaining exceedingly high breakdown and locked rotor torque while providing the highest rated efficiency levels.
Weights & Dimensions
- Dimension C 19.517 in
Product Details
- RPM Range 1701-1800 rpm
- Kilowatts 7.5 kW
- Voltage 208-230/460 V
- Mounting Location Rigid
- Frame 215T
- Service Factor 1.25
- Horsepower 10 HP
- Enclosure Type Totally Enclosed
- Is_Motor Yes
- Phase 3
- Enclosure TEFC
- Compatible Part/Model Number Baldor ECP3774T, Dayton - GE & WW Grainger 2G703, GE 5KE215BC205, Leeson G150140
- Full Load Efficiency 91.7
- Brand WEG
- Full Load Amps 27.4-24.8/12.4 FLA
- Motor RPM 60 Hertz 1800 rpm
- Hertz 60 Hz
- Manufacturers Part Number 01018ET3E215T-W22
- Nameplate RPM 1800 rpm
