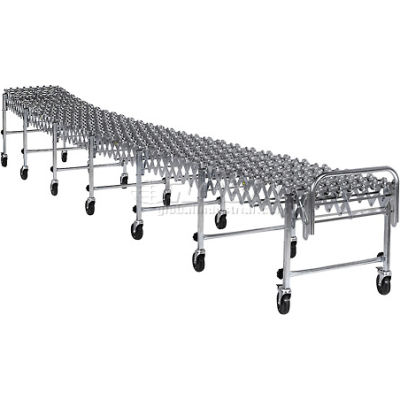

NestaFlex® PORTABLE FLEXIBLE CONVEYOR
Flexible and expandable portable gravity conveyor is ideal for shipping, receiving, assembly and packaging stations. Reduces to 25% of expanded length for compact storage. Self-tracking Skate Wheel Conveyor offers smooth movement of multi-size material. Steel skate wheels have 8 steel ball bearings in a captive race. 5-1/4" axle centers for 11" minimum package size. Zinc plated 12 gauge steel legs and 5/16" dia. steel axles. Box stop and 2 hook couplers included. Telescopic legs adjust from 28" to 44" high. 5" x 1-1/2" swivel casters, with brakes on end legs, for easy transport. All units bend around a 12" radius. 18 Month Limited Warranty.
Flexible and expandable portable gravity conveyor is ideal for shipping, receiving, assembly and packaging stations. Reduces to 25% of expanded length for compact storage. Self-tracking Skate Wheel Conveyor offers smooth movement of multi-size material. Steel skate wheels have 8 steel ball bearings in a captive race. 5-1/4" axle centers for 11" minimum package size. Zinc plated 12 gauge steel legs and 5/16" dia. steel axles. Box stop and 2 hook couplers included. Telescopic legs adjust from 28" to 44" high. 5" x 1-1/2" swivel casters, with brakes on end legs, for easy transport. All units bend around a 12" radius. 18 Month Limited Warranty.
Weights & Dimensions
- Max Leg Height 44 in
- Width 14 in
- Skate Wheel Diameter 1.9 in
- Inside Radius 12 in
- Axle Center 5-1/4 in
- Adjustable Length 6'2 to 24'8 in
- Weight Capacity 226 . per ft. lbs
- Min Leg Height 28 in
- Overall Length Range 21'0" to 30'11"
Product Details
- Leg Sets per Unit 7
- Wheel/Roller Material Steel
- Assembly Required Assembled
- Skate Wheels per Axle 6
- Type Portable Flexible Conveyor
- Brand NestaFlex Conveyors
- Material Steel
- Manufacturers Part Number 22614024-S
- Conveyor Section Flexible
Warranty
- Warranty 18 mo
⚌
