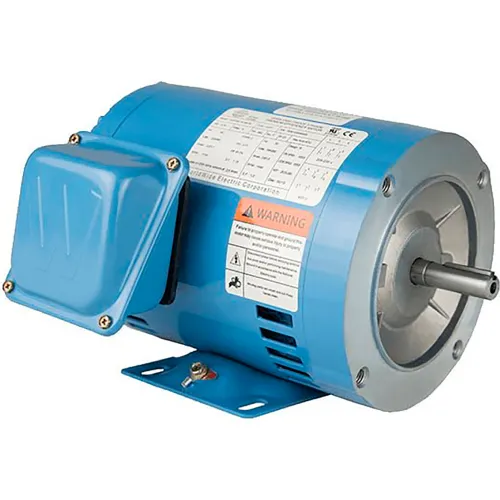

WorldWide Electric Corporation General Purpose Motor, ODP w/Rigid Base, 5HP, 3600RPM

WorldWide Electric's Open Drip Proof (ODP) motors are designed and engineered for use in HVAC and refrigeration equipment, air compressors, and general purpose installations where cooler-running, non-enclosed motors are ideal. WorldWide Electric Premium Efficiency ODP motors are available in horsepower ratings from 1/2 to 125 and feature IP23 degree of protection and a double vacuum pressure impregnation process for winding insulation. These motors are an ideal solution for a wide range of industrial and commercial needs.

Features:

• 1/2-125 HP
• 3600, 1800, 1200 RPM
• 208-230/460 Volt, 60 Hz
• 190/380 Volt, 50 Hz
• Open Drip Proof (ODP) Enclosure
• Rolled Steel Frame (1/2-50 HP) – Cast Iron Frame (60-100 HP)
• IP23 Protection
• 1.15 SF (1.0 SF for 50 Hz Applications)
• Class F Insulation
• Rigid Base (56C-Face with Removable Base)
• Premium Efficiency
• Class B Temperature Rise
• Inverter Duty, 10:1 CT / 20:1 VT (1.0 SF)
• Inverter Grade Magnet Wire Meets or Exceeds NEMA MG-1 Part 31
• Pre-Drilled and Tapped Drive Endbells on 143T Frame and Up to Accept Inpro® Current Diverter Rings; No Machining Required, Simple and Easy Installation
• Exclusive Double Vacuum Pressure Impregnation (VPI) Insulation System
• Double Drilled Feet to Accommodate Mounting Flexibility (143T-404T)
• 254T and larger are suitable for F1 to F2 conversion
