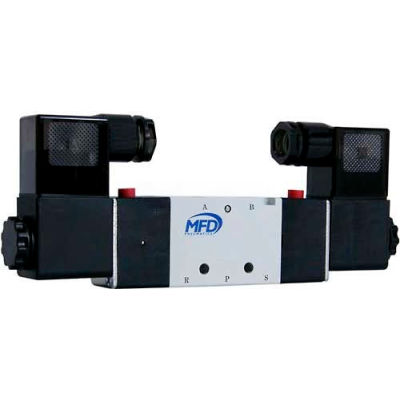

M4V220-08 piloted double solenoid valves are 4-way, 1/4 in NPT inlet port, 1/8 in NPT exhaust port, spool style valves. They are stackable and provide a 2-position, normally closed operation. The M4V220-08 series valves can be used in individual valve applications or multiple valves can be assembled together on a manifold to share supply air which simplifies the piping. They are compatible with the M200M series manifolds. The DIN connector includes an LED indicator. Valves equipped with a turning manual override.
- LENGTH INCHES 6-3/4
- WIDTH INCHES 7/8
- HEIGHT INCHES 2-5/8
- BRAND Bimba-Mead
- MANUFACTURERS PART NUMBER M4V220-08-110VAC
- TYPE 5 Port 2 Position
- TEMPERATURE RANGE 23∼140°F
- PRESSURE 22 to 120 PSI
- LUBRICATION Not Required
- ACTUATION Internally Piloted
- MEDIA Air
- INSULATION Class F
- FLOW Cv = 0.89
- PORT SIZE 1/4" NPT Inlet Port, 1/8" NPT Exhaust Port
- POWER CONSUMPTION 3.5 VA
- PROTECTION IP65 (DIN 40050)
- POWER CONNECTION DIN / LED Connector
- VOLTAGE RANGE ±10%
