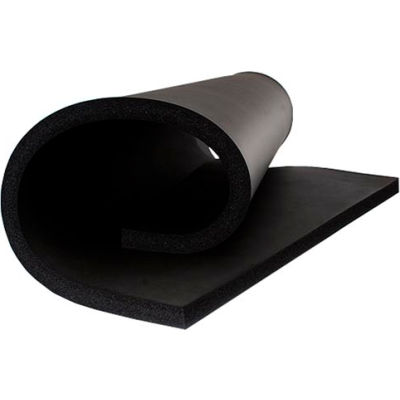

Insul-Sheet® S2S 1/2" x 36" x 48"
INSUL-SHEET® insulation is an environmentally friendly, CFC-free, flexible elastomeric thermal insulation. INSUL-SHEET® insulation is used to retard heat gain and prevent condensation or frost formation on cold equipment, tanks, vessels, ducts, or large O.D. pipes. It also effectively retards heat loss when used on hot equipment, ducts, or large pipes. INSUL-SHEET® can be used as duct covering. Thickness has been calculated to control condensation on cold surfaces. For optimum performance, outdoor applications require 374 Protective Coating or other recommended protective coating, cladding or jacketing.
SPECIFICATION COMPLIANCE ASTM C 534 Type 2 (Sheet), Grade 1 ASTM D 1056-00-2C1 New York City MEA 186-86-M Vol. IV USDA Requirements STC = 17 per ASTM E 90. UL 94-5V Flammability Classification (Recognition No. E300774) ASTM E 84 2" 25/50-tested according to UL 723 and NFPA 255 Complies with requirements of CAN/ULC S102-03. NFPA No. 101 Class A Rating. Meets requirements of NFPA 90A/B Sect. 2.3.3 for Supplementary Materials for Air Distribution Systems. Meets requirements of UL 181 sections 11.0 and 16.0 (Mold Growth/Air Erosion). Meets requirements of ASTM C 411 (Test Method for Hot Surface Performance of High Temperature Thermal Insulation). MIL-P-15280, Form S (Sheet). R8 Sheet meets R-value requirements of the International Energy Conservation Code for Outdoor Ductwork. Sold in package of 12.
INSUL-SHEET® insulation is an environmentally friendly, CFC-free, flexible elastomeric thermal insulation. INSUL-SHEET® insulation is used to retard heat gain and prevent condensation or frost formation on cold equipment, tanks, vessels, ducts, or large O.D. pipes. It also effectively retards heat loss when used on hot equipment, ducts, or large pipes. INSUL-SHEET® can be used as duct covering. Thickness has been calculated to control condensation on cold surfaces. For optimum performance, outdoor applications require 374 Protective Coating or other recommended protective coating, cladding or jacketing.
SPECIFICATION COMPLIANCE ASTM C 534 Type 2 (Sheet), Grade 1 ASTM D 1056-00-2C1 New York City MEA 186-86-M Vol. IV USDA Requirements STC = 17 per ASTM E 90. UL 94-5V Flammability Classification (Recognition No. E300774) ASTM E 84 2" 25/50-tested according to UL 723 and NFPA 255 Complies with requirements of CAN/ULC S102-03. NFPA No. 101 Class A Rating. Meets requirements of NFPA 90A/B Sect. 2.3.3 for Supplementary Materials for Air Distribution Systems. Meets requirements of UL 181 sections 11.0 and 16.0 (Mold Growth/Air Erosion). Meets requirements of ASTM C 411 (Test Method for Hot Surface Performance of High Temperature Thermal Insulation). MIL-P-15280, Form S (Sheet). R8 Sheet meets R-value requirements of the International Energy Conservation Code for Outdoor Ductwork. Sold in package of 12.
Product Specifications
- BRANDK-Flex USA
- MANUFACTURERS PART NUMBER6RSX3X4048
- PACKAGE QUANTITY1
- WIDTH INCHES36
- LENGTH FEET4
- THERMAL CONDUCTIVITY 90°F MEAN.27 BTU-in/hr-ft²-°F
- THICKNESS INCHES1/2
- SMOKE DEVELOPED UP TO 1/2" THICKNESSNot Greater Than 50
- OPERATING TEMPERATURE RANGE-297°F - 220°F
- FLAME SPREAD UP TO 1/2" THICKNESSNot Greater Than 25
- CHEMICAL/ SOLVENT RESISTANCEGood
- DESCRIPTIONSkin 2 Sides
- MILDEW RESISTANCE/ AIR EROSIONPass
- WATER VAPOR PERMEABILITY DRY CUP<0.06
- DENSITY3-6 PCF
- WATER ABSORPTION %<0.20 by Volume
- OZONE RESISTANCEPass
- THERMAL CONDUCTIVITY 75°F MEAN.25 BTU-in/hr-ft²-°F
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: Anonymous
Date: November 01, 2017
-
Reviewer: Anonymous
Date: June 09, 2016
Your review:
Worked to cover dies while pressman put dies in press to prevent nicks.
Product Q & A
There are 2 questions and 2 answers for this product.
-
Will this product absorb water like a sponge or is it water resistant?
Question Asked By: Steve, March 19, 2019
Answer This Question
Question Answered By:
-
Product Expert, March 19, 2019
The material is water resistant. Thank you for your interest in our product.
-
-
would this work for tool cutouts for a tool box?
Question Asked By: Greg, January 16, 2019
Answer This Question
Question Answered By:
-
anonymous
Hello Greg. Yes, this unit would work for your application. Thank you for your interest in our product.
-
