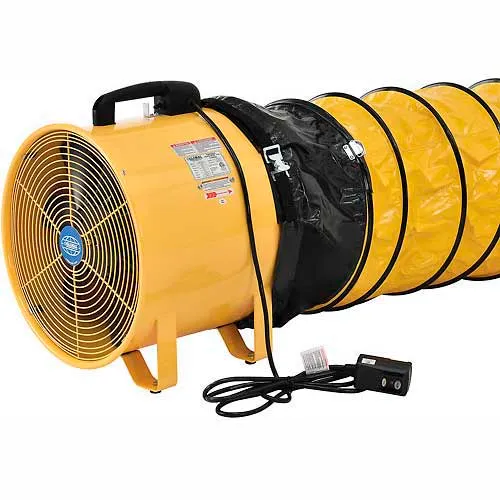

Exhaust fans help ventilate and cool manholes, tanks and crawl spaces. Made using durable steel housing with a yellow finish. These two-speed blowers are lightweight and portable with an easy-carry handle. Powder coated steel blade guards enclose housing for safety. Rubber feet on base help minimize noise and reduce vibrations. Includes 10'L power cord. Ducting easily converts blower to an exhaust fan with convenient, flexible ducting. Ducts include quick-connect coupling for easy blower attachment. Ducts are made with 2-ply reinforced polyvinyl that is flame retardant and withstands -20° to 180°F temperatures. 120V. ETL, cETL Listed and conforms to UL507 Standard. This product has limited warranty of 1 year. Horsepower rating based upon maximum speed/load.
Weights & Dimensions
- Weight 44 lbs
- Fan Diameter 12 in
- Cord Length 10 ft
Product Details
- Number of Blades 7
- Number of Speeds 2
- Mounting Location Free-Standing
- Blade Type Die Casted Aluminum Alloy
- Assembly Required Assembled
- Amperage 3.58 A
- Package Quantity 1
- Drive Type Direct Drive
- Material Polyvinyl/Steel
- CFM Low 1,394 CFM
- RPM High 3,300 rpm
- Voltage 120 V
- Description Blower Fan w/ 32'L Ducting
- Horsepower 3/8 HP
- CFM High 1640 CFM
- Motor Type Totally Enclosed
- Phase 1
- Power Cord Type GFCI
- Oscillating/Non Oscillating Non-Oscillating
- Watts 430 W
- Brand Global Industrial
- Max Ambient Temperature 104 °F
- Decibels 85
- Hertz 60 Hz
- Manufacturers Part Number 246432
- Color Family Yellow
- Fan Type Industrial
Warranty
- Warranty 1 yr
Compliance & Certifications
- Certifications ETL, cETL Listed, OSHA & UL507 Compliant
⚌
Photo/Video Gallery
Customer Review
Most Recent Reviews
- Most Recent Reviews
- Highest Rated Reviews
- Lowest Rated Reviews
-
Reviewer: ERIC
Date: June 22, 2022
-
Reviewer: AN
Date: April 14, 2022
Your review:
Laurel was very helpful to get the tax exempt done. In addition she was able to track down the ups status and determine that next day delivery was late. -
Reviewer: OLIVER
Date: March 01, 2022
Your review:
Works great, hoses easily extend (with or wo extender piece). -
Reviewer: Michael
Date: January 05, 2022
Your review:
Great fan and hose attachment. Works great. -
Reviewer: Herman
Date: September 08, 2021
Your review:
Everything was great. the product was on time and it is exactly what i ordered. -
Reviewer: David
Date: June 06, 2021
Your review:
Really good product,I order two, one came damage,called costumer service ,they took care very fast, great company great service ,very good product. -
Reviewer: ANN
Date: October 20, 2020
Your review:
Accurately described. Arrived promptly and in good condition. -
Reviewer: FABIOLA
Date: September 17, 2020
Your review:
Excelente products! I really recommend! -
Reviewer: Anonymous
Date: April 04, 2018
Your review:
This fan is powerful and has worked well during my renovation. -
Reviewer: Anonymous
Date: March 23, 2018
Your review:
works great we use it in our screen printing shop to pull hot air from our dryer.
Product Q & A
There are 8 questions and 8 answers for this product.
-
Does the 32' flexible duck have to be fully extended? Doing a home remodeling and at times 12' to 16' maybe sufficient to duck out. Also would an overkill on the CFM be stressful on a per say the 16" unit.
Question Asked By: Robert, December 15, 2020
Answer This Question
Question Answered By:
-
Product Expert, December 16, 2020
Hello, it is not needed to have the duct fully extended, simply ensure there are not blockages to the airflow. Thank you for your interest in our products.
-
-
Can additional ducting be added?
Question Asked By: Randy, October 23, 2018
Answer This Question
Question Answered By:
-
anonymous
Hello Randy, additional ducting may be added, but is not recommended. It will have a negative impact on the fan performance. Thank you for your question.
-
-
The duct shows a temperature rating up to 180 degrees F but the fan does not mention a rating. There was a similar unit rated to only 120 degrees. Can you confirm the maximum temperature this fan can move?The Operating temperature range for the fan is 32 - 104 degrees F
Question Asked By: Ken, December 13, 2017
Answer This Question
Question Answered By:
-
anonymous
The max temperature for the fan is actually lower than the ducting. The fan can only safely handle 105°F. Thank you.
-
-
I live in condo with 26' high cathedral ceiling. Want to run 32'duct to top of ceiling to exhaust the hot air outside. Total space is approx. 9000 cu. ft. A couple questions: 1. What fan size is appropriate to exhaust this space (8" vs 12")? 2. What is the sound level of these fans (8" vs 12"). Is is appropriate for condo with shared walls?
Question Asked By: John, May 18, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello John, We do not think this fan would be a good fit for your application. This would be very loud. We recommend getting an in-line fan or a roof mount fan, at 680 or 690 CFM which is about 66Db. Any louder then that and you neighbors will most likely complain. I've included the links to the in-line and roof mount fans: http://www.globalindustrial.com/c/hvac/exhaust-fans/in-line-duct-fans http://www.globalindustrial.com/c/hvac/exhaust-fans/roof-ventilators We do suggest you contact a local HVAC contractor and speak with them regarding this they may have a better insight. Thank you for your interest in our product!
-
-
Can this motor be controlled by a VFD?
Question Asked By: Christopher, May 11, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Christopher, No this cannot. The motor isn't designed for that. Thank you for your interest in our product!
-
-
Is this one 32' duct or 2 16' ducts?
Question Asked By: Gary, April 07, 2017
Answer This Question
Question Answered By:
-
anonymous
Hello Gary, This is one 32' Duct. Thank you for your interest in our product!
-
-
Does this exhaust fan have a sealed motor, safe for exhausting paint fumes?
Question Asked By: Blain, June 09, 2015
Answer This Question
Question Answered By:
-
Product Expert, June 09, 2015
"No this unit does not have a sealed motor for the exhaust of pain fumes. You need to look at our explosion proof exhaust fans for this. "
-
-
Additional specs
Question Asked By: May 06, 2014
Answer This Question
Question Answered By:
-
anonymous
12' power cable. Connector(s) 1 x power NEMA 5-15 - male Connector(s) (Other Side) 1 x power IEC 320 EN 60320 C13 - female
-
