Features:<ul Style="Margin-Top:0Px; Padding-Top: 5Px; Padding-Bottom: 5Px;"><li>7" square has a 7" outside scale, 6" inside scale plusa 3" scale on the bottom & 1-1/4" on the ends</li><li>12" square has a 13" outside scale, 12" inside scaleplus a 5" scale on the bottom & 1-3/8" on the ends</li><li>Outer rule is 16ths scale and has left to right and centering rule with small drilled holes every 1/16"</li><li>Inner rule is 32nds scale and has left to right rule with small drilled holes every 1/8"</li><li>Angle markings and drilled holes in the centerfrom 5&#176; to 60&#176; in 5&#176; increments plus a 22.5&#176;</li><li>Aluminum base with blue anodized finish is 1/2" talland blades off set at 1/4" and 3/8" and a 45&#176; cut out</li><li>Squareness: &#177;0.006"</li><li>Square Accuracy: 0.002"</li><li>Laser engraving on both sides of 2 mm blades</li><li>Sets include a mechanical pencil and lead refills</li><li>Supplied in protective box</li></ul>

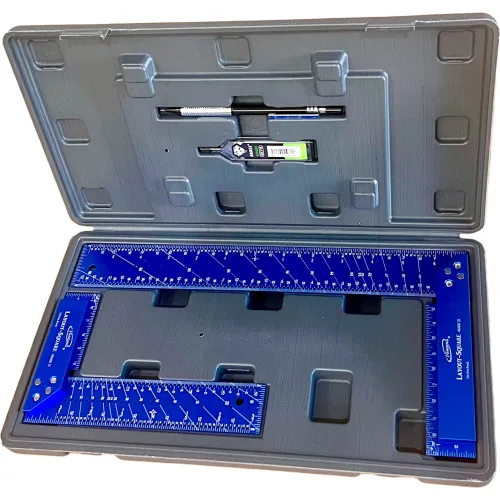

iGAGING&#174; Precision Layout Square For Layout, Line and Angle Drawing, 7 & 12" Set

precision-layout-square-for-layout-line-and-angle-drawing-7--12-set
