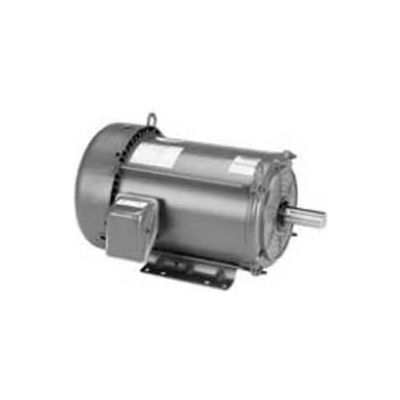

Marathon Motors Premium Efficiency Motor, E2002, 1HP, 1200RPM, 208-230/460V, 3PH, 145TC FR, TEFC

Actual product may differ from image shown

Marathon Motors Premium Efficiency Motor, E2002, 1HP, 1200RPM, 208-230/460V, 3PH, 145TC FR, TEFC

Item #: WBB871303

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $404.95

Save $20.25 with 5% off when you use your Global Industrial Credit Card.

Quantity

Customers Also Viewed

Marathon Motors Premium Efficiency Motor, E2002, 1HP, 1200RPM, 208-230/460V, 3PH, 145TC FR, TEFC

Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.

  • HORSEPOWER 1
  • ENCLOSURE TEFC
  • FRAME 145TC
  • MOUNTING C-Face Rigid
  • NAMEPLATE RPM 1200
  • PHASE 3
  • MOTOR RPM 60Hz 1200
  • VOLTAGE 208-230/460
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 45
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 1101-1200
  • ENCLOSURE TYPE Totally Enclosed
  • IP CODE 43
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # E2002
  • 50 Hertz SF 1.15
  • BRAND Marathon Motors
  • 50 HERTZ FL AMPS 4/2.0
  • 50 HERTZ VOLTAGE 190/380
  • STARTING TYPE Across The Line
  • OPPOSITE END BEARING SIZE 6203
  • DRIVE END BEARING SIZE 6205
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • ASSEMBLY F3
  • KVA-CODE K
  • 50 HERTZ RPM 1000
  • 50 Hertz kW .75
  • 50 Hertz HP 1
  • FL AMPS 3.8-3.8/1.9
  • INSULATION CLASS F
  • FL EFFICIENCY 82.5
  • BEARING-OPP-DRIVE-END 6203
  • BEARING-DRIVE-END 6205
  • 60 HERTZ kW .75
  • MODEL NUMBER 145TTFR6078
