Marathon Motors Premium Efficiency Motor, U274, 150HP, 1200RPM, 460V, 3PH, 447T FR, DP

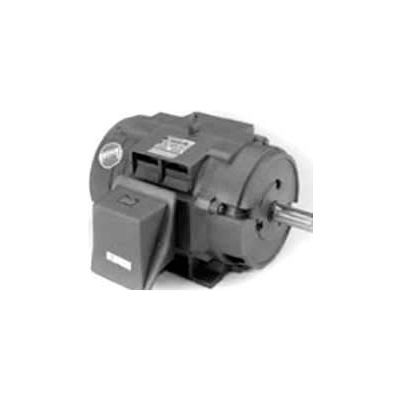

Actual product may differ from image shown

Marathon Motors Premium Efficiency Motor, U274, 150HP, 1200RPM, 460V, 3PH, 447T FR, DP

Item #: WBB871535

Not Yet Rated

Free Shipping

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $8,459.00

$1,409.83/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Premium Efficiency Motor, U274, 150HP, 1200RPM, 460V, 3PH, 447T FR, DP

Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.

  • HORSEPOWER 150
  • ENCLOSURE DP
  • FRAME 447T
  • MOUNTING Rigid
  • NAMEPLATE RPM 1200
  • PHASE 3
  • MOTOR RPM 60Hz 1200
  • VOLTAGE 460
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • THERMAL PROTECTION Thermostats (Normally Closed)
  • AMBIENT TEMP C 40
  • WEIGHT 2068
  • UL Recognized Construction
  • CSA y
  • RPM RANGE 1101-1200
  • ENCLOSURE TYPE Open/Drip Proof
  • IP CODE 12
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # U274
  • BRAND Marathon Motors
  • STARTING TYPE Across The Line
  • OPPOSITE END BEARING SIZE 6314
  • DRIVE END BEARING SIZE 6318
  • ASSEMBLY F1 (F2 Modification Available)
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • KVA-CODE G
  • FL AMPS 185
  • INSULATION CLASS F
  • FL EFFICIENCY 95.4
  • BEARING-OPP-DRIVE-END 6314
  • BEARING-DRIVE-END 6318
  • 60 HERTZ kW 112
  • MODEL NUMBER 447TTDN16077
