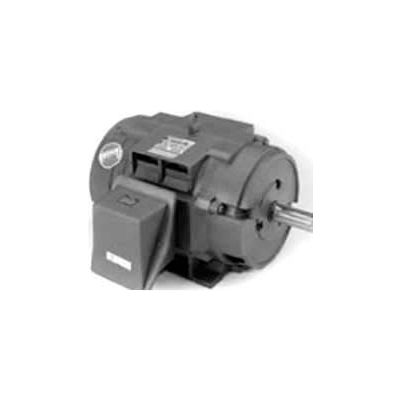

Marathon Motors Premium Efficiency Motor, U763, 7 1/2HP, 1800RPM, 208-230/460V, 3PH, 213T FR, DP

Actual product may differ from image shown

Marathon Motors Premium Efficiency Motor, U763, 7 1/2HP, 1800RPM, 208-230/460V, 3PH, 213T FR, DP

Item #: WBB871342

Not Yet Rated

Enter zip code for delivery date estimate

Shipping to 10465 change

Price: $661.00

$110.17/mo suggested payments with 6 month special financing OR Save 5%on Purchase.

Quantity

Customers Also Viewed

Marathon Motors Premium Efficiency Motor, U763, 7 1/2HP, 1800RPM, 208-230/460V, 3PH, 213T FR, DP

Marathon's XRI Premium Efficiency motors are designed to conserve energy over extended time periods. These premium efficiency designs are available in both Totally Enclosed Fan Cooled and Open Drip Proof construction.

  • HORSEPOWER 7 1/2
  • ENCLOSURE DP
  • FRAME 213T
  • MOUNTING Rigid
  • NAMEPLATE RPM 1800
  • PHASE 3
  • MOTOR RPM 60Hz 1800
  • VOLTAGE 208-230/460
  • DUTY Continuous
  • SERVICE FACTOR 1.15
  • AMBIENT TEMP C 40
  • WEIGHT 174
  • UL Recognized Construction
  • CSA Y
  • RPM RANGE 1701-1800
  • ENCLOSURE TYPE Open/Drip Proof
  • IP CODE 22
  • is_motor Yes
  • ORIENTATION Horizontal
  • MANUFACTURER PART # U763
  • 50 Hertz SF 1
  • BRAND Marathon Motors
  • 50 HERTZ FL AMPS 22.2/11.1
  • 50 HERTZ VOLTAGE 200/400
  • STARTING TYPE Across The Line
  • NEMA DESIGN B
  • APPROVAL-CE Y
  • ASSEMBLY F1 Only
  • 50 Hertz FL eFF 89.50 Percent
  • KVA-CODE J
  • 50 HERTZ RPM 1500
  • 50 Hertz kW 5.6
  • 50 Hertz HP 7-1/2
  • FL AMPS 20.6-19.8/9.9
  • INSULATION CLASS F
  • FL EFFICIENCY 91
  • BEARING-OPP-DRIVE-END Ball
  • BEARING-DRIVE-END Ball
  • 60 HERTZ kW 5.6
  • MODEL NUMBER 213TTDC6026
