IKO

Model # :WBB1309763

MPN #: CRY24VUU

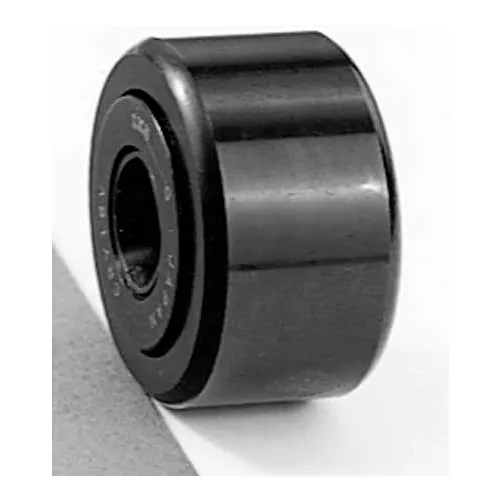

IKO Roller Follower- Full Comp- Inch, CRY24VUU, Double Sealed, 1-1/2" OD

Product Description
IKO Non-separable Yoke Type Roller Follower is full complement bearing with inner ring, side plates and thick-walled outer ring to withstand heavy rolling or shock loads. Its surface is treated with black oxide coating. Roller Followers are available with Crowned or Cylindrical outer rings. The crowned outer ring relieves edge load created by mounting error and the cylindrical is suitable for applications with large loads or low track surface hardness due to a large contact area with mating track surface. Sufficient lubrication is needed between roller followers and steel track on which cam followers run, to prevent seizure and to reduce friction.

PRICE
$33.95

Min. purchase quantity is 2
2
2
Ships in 7 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Width23.813 (.9375) mm
Static Load Rating40100 N
Outer Ring Width22.225 (7/8) in
Outside Dimension Tolerance+0 / -0.025 mm
Outside Dimension38.100 (1-1/2) in
Tolerance Outer Ring Width+0 / -0.130
Outer Ring Corner Radius Min1.588 (1/16)
Bore Diameter11.112 (7/16) in
Bore Tolerance+0.005 / -0.010
Side Plate OD (A)28.8 (1.134) in
Tolerance Overall Width+0.130 / -0.250

Product Details

Shaft Diameter Press Fit11.115 to 11.125
Retainer MaterialNone
Bearing StyleCylindrical OD
Prepacked GreaseYES
Shaft Diameter Drive Fit11.110 to 11.120
Shaft Diameter Push Fit11.095 to 11.105
Manufacturers Part NumberCRY24VUU
Oil Hole & GrooveAt inner ring
BrandIKO
TypeDouble Sealed
Dynamic Load Rating (N)28200
SeriesCRY
Needle ConstructionFull Compliment
Radial Clearance0.035 to 0.060
Track Capacity15400 N
DescriptionRoller Follower - Full Compliment - Inch Series
