IKO

Model # :WBB1499236

MPN #: RNAFW152320

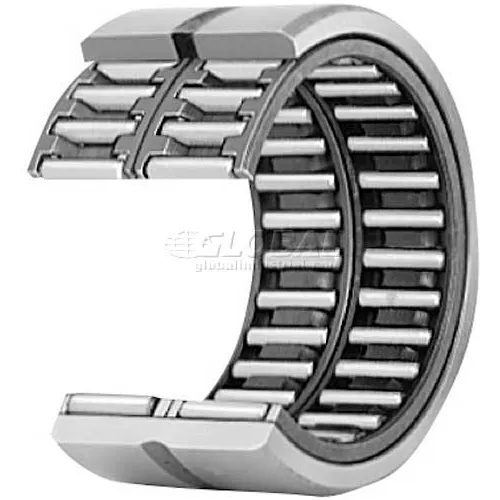

IKO Double Row Machined Type Needle Roller Bearing METRIC Separable Cage, 15mm Bore, 23mm OD

Product Description
IKO Machined Type Needle Roller Bearings (RNAF & RNAFW) consist of outer ring, inner ring and separable cage, without inner ring. Single row (RNAF) and double row (RNAFW) are available with the same sectional heights. These bearings are suitable for mass-production high accuracy products such as machine tools, textile machineries, printing machines, etc. Since these are not provided with prepacked lubricant, proper lubrication must apply when they are used. Machined Type needle roller bearings are generally used with shafts without inner rings. 0.2µmRa or less shaft surface finish and HRC 58 to 64 shaft hardness are recommended. When these requirements are not possible, use of IKO Inner Rings are recommended.

PRICE
$30.95

Min. purchase quantity is 2
2
2
Ships in 3 Business Days
Add or Change Zip Code(s)
Easy online or call-in returns. Read return policy

Weights & Dimensions

Bore Tolerance+0.027 / +0.016
Outer Ring Width20 in
Outside Dimension Tolerance+0 / -0.009 mm
Bore (Fw) Mm/Inch15 in
Max Housing Shoulder Diameter21
ToleranceISO CLASS 0
Outside Dimension23 in
Static Load15400 N
Tolerance Outer Ring Width+0 / -0.120
Outer Ring Corner Radius Min0.3

Product Details

Dynamic Load Rating (N)11400
Retainer MaterialMachined Steel
Prepacked GreaseNo
SeriesRNAFW
Oil Max Speed35000 rpm
Operating Temperature-20 to +120
Manufacturers Part NumberRNAFW152320
Grease Max Speed17500 rpm
Oil Hole & GrooveYes
BrandIKO
