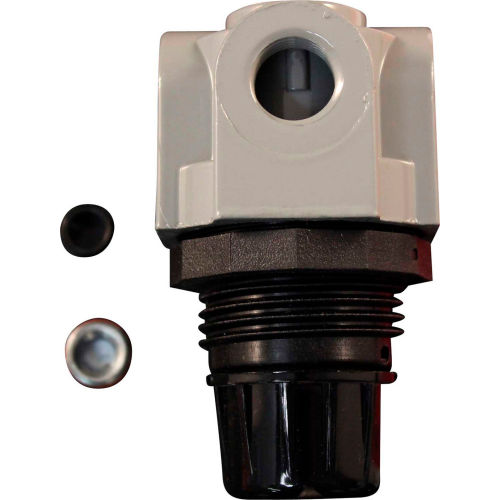

Milton S-1145 Mini Heavy Duty Regulator 1/4" NPT 250 PSI Gauge Not Included

In line lubricator with 1/4" MNPT x 1/4" FNPT to lubricate pneumatic tools for full protection. Accurately meters correct amount of oil. Milton oil #1001 recommended. In line lubricator is great for when you don't have access to full FRL system. 1/2 ounce oil capacity.

3/4" NPT heavy duty lubricator is the drip style which allows precise settings for trouble free protection. The adjusting knob is removable to ensure tamper proof reliability. This lubricator may be filled without shutting down line pressure and oil can be delivered at an air flow as low as 2 SCFM. The included sight glass allows observation for instant drip rate adjustment. Comes with 20 ounce capacity metal bowl. Maximum pressure of 200 PSI and 142 SCFM.

45 degree dial type tire gauge has an internal diaphragm construction for greater durability. Has a range or 0-60 PSI or 0-400 kPa. 45 degree chuck head comes with deflator valve and durable rubber boot. Maximum 60 pounds per square inch. Single head chuck. Includes deflator valve.

1/4" NPT high pressure regulator is the heavy duty relieving type and offers a stable downstream air pressure over a wide range of air flows with accurate control fast response time and minimal pressure drop. Offset gauge ports can also serve as two 1/4" supply lines. The aluminum die cast body comes with a balanced piston and molded rubber seat. Mas a Maximum inlet pressure of 250 PSI and offers up to 50 SCFM.

1/4" NPT Mini precision lubricator is a visible drip type lubricator with an external adjustment screw. Unit is designed for low air flow applications where space is limited. Bypass system allows full air flow with minimum pressure drop and assures proper air/water mixture over full operating range. Requires approximately 1 SCFM of air flow to deliver oil. Includes polycarbonate bowl and two 1/8" NPT gauge ports.
